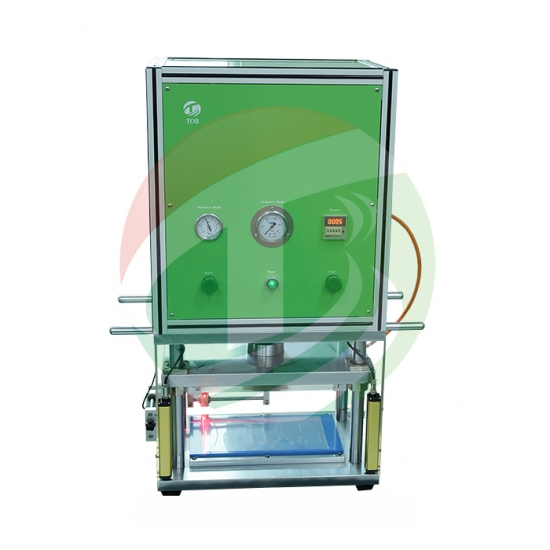

TOB TOB-MQ300 Battery Electrode Cutter Die ເຄື່ອງຕັດ (200*300mm)
Work voltage: AC110V/220V, 50/60HZ
Power: 100W
Max cutter die size: 200mm(L) * 300mm(W)
Die Set Dimensions
One set of standard electrode die is included.within the dimensions:400mm(L) *300mm(W)
Customized size die is available upon request
Safety Protection: Built in Safety Curtain to protect against hand injuries during electrode feeding Double start press button
Cutting Accuracy: ±0.1mm
Air Cylinder: 3 tons Max. pressure
Tensile Cylinder: 0.15 tons pressure
Cutting stroke: 250mm
Feeding: Manually
Production Yield: 800 - 2000 pieces of electrodes per hour
Air Pressure: 0.5-0.8Mpa
Dimension (L*W*H): 580*455* 900mm
Net Weight: 120kg (265 lbs)
Shipping Dimensions: 47*75*109cm
