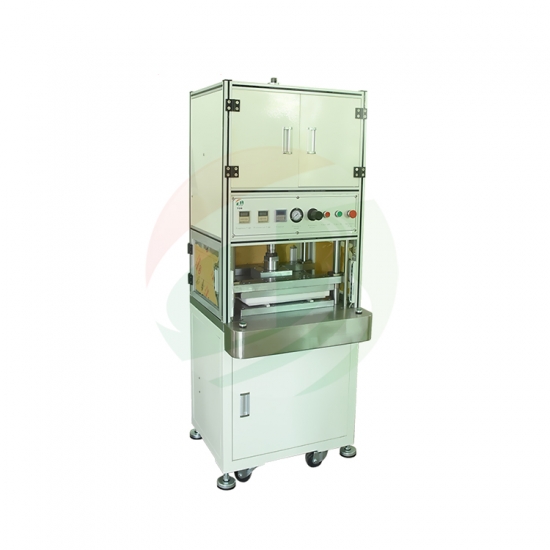

TOB TOB-MQ-400 ເຄື່ອງຕັດເຄື່ອງຕັດໄຟຟ້າເຄິ່ງອັດຕະໂນມັດສຳລັບກະເປົ໋າ (400*300mm)
Work voltage: AC110V/220V, 50/60HZ
Power: 500W
Max cutter die size: 400mm(L) * 300mm(W)
Die Set Dimensions
One set of standard electrode die is included within the dimensions:400mm(L) *300mm(W)
Customized size die is available upon request
Safety Protection
Built in Safety Curtain to protect against hand injuires during electrode feedin
Double start press buttong
Cutting Accuracy: ±0.1mm
Air Cylinder: 5 tons Max. pressure
Cutting stroke:250mm
Feeding: Manually
Production Yield: 100-400 pieces of electrodes per hour according to battery sheet size
Air Pressure: 0.6-0.7Mpa,40L/S
Dimension (L*W*H): 1000*760*2160mm
Net Weight: 1000kg
