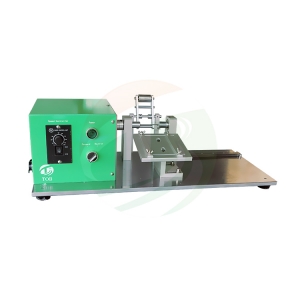

TOB TOB-JR135-C ເຄື່ອງ winding ເຄິ່ງອັດຕະໂນມັດສໍາລັບຈຸລັງກະບອກ (40W, 0-170 RPM)
Working Voltage: AC110V/220V, 50/60HZ
Power: 40W
Winding Speed: 0 - 170 RPM Adjustable
Winding Shaft
Dimensions: 4mm(OD) x 65mm(L) for 18650 cylinder battery core
Other sizes like 26650 and 32650 are available upon request
Winding Mode: Switchable between clockwise and counterclockwise
Output: 70-100EA/h, according to battery size and maunal
Product Dimensions(L*W*H): 360*310*280mm
Net weight: About 20kg (45 lbs)
Application Notes
This machine can be used for cylinder battery with round winding shaft,
and you can also choose the square winding shaft for pouch cell core winding,
We will supply with the suitable winding accessories according to your battery model
