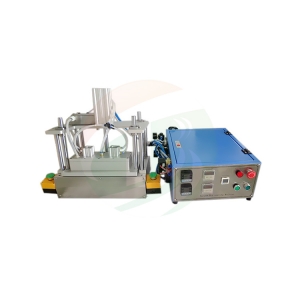

TOB TOB-JK-200 Battery Pouch Vacuum Sealing Machine (1200W, -90kpa-0)
Power Supply: 110V-240V, selectable, Single Phase 50/60Hz
Power: 1200W
Sealing Pressure: Vacuum chamber lid and sealing die need to be drived by compressed high purity inert gases with recommended 60 psi
Vacuum degree: -90kpa-0, adjustable
Sealing head length: 200mm, customize
Sealing stamp width: 5mm, customized
Sealing temperature: RT-250℃, adjustable with control accuracy of +/-2°C
Heating Timer: 0 - 99 seconds Adjustable
Air supply: 0.4-0.6MPa
Dimension(L*W*H)
Sealing Unit : 600mm(L) x 300mm(W) x 500mm(H)
Control Unit: 400mm(L) x 450mm(W) x 200mm(H)
Package dimension: 660*600*590mm
Net weight
Sealing machine : 45kg
Control box : 15kg
Package weight: 75kg
Accessories parts
01 piece heating pipe
03 meters seal components
01 piece intermediate relay
01 piece time relay
01 customized power plug line
