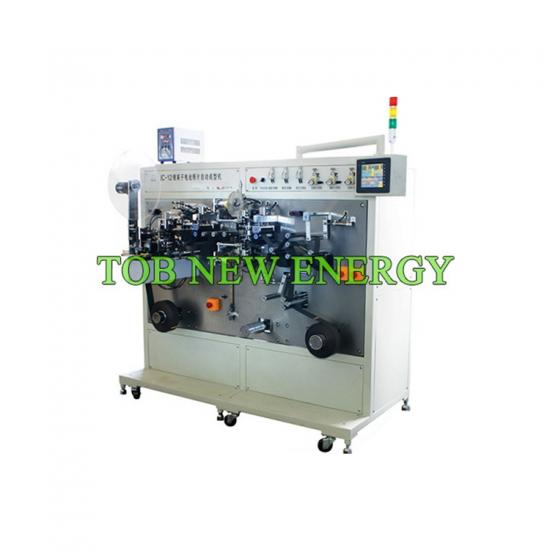

TOB TOB-JC200-4S-06B Roller ເຄື່ອງເຊື່ອມ Ultrasonic ສໍາລັບຫມໍ້ໄຟ Electrode Anode (6KW)
Source voltage: AC220V/50Hz/Single phase. Customized according country request
Power: 6KW
Compressed air: 0.4～0.8Mpa (4-8kgf/cm)
Vacuum degree: -101kp～-50kp with vacuum flow 20L/min
Operating environment
Temperature: 20～35℃
Humidity: 5～55％HR
Material
• Electrode
+ Feeding mode: Roller
+ Material length(mm): 300-1200
+ Material width(mm)
Range: 100-200
Tolerance: 0.2
+ Material thickness(um)
Range: 100-280
Tolerance: 5
+ Max outside diameter(mm): Ф450
+ Inner diameter(mm): Ф76.2
• Tab
+ Feeding mode: Roller
+ Material length(mm): 25-60
+ Material width(mm)
Range: 10
Tolerance: 0.2
+ Material thickness(um)
Range: 100-150
Tolerance: 5
+ Max outside diameter(mm): Ф400
+ Inner diameter(mm): Ф76.2
• Tape
+ Feeding mode: Roller
+ Material length(mm): 68
+ Material width(mm)
Range: 14
Tolerance: 0.2
+ Material thickness(um)
Range: 50-80
Tolerance: 5
+ Max outside diameter(mm): Ф200
+ Inner diameter(mm): Ф76.2
Welding area: Customized
Tab welding skewness: ±3°
Welding tension : ≥15N
Cutter knife life
Cathode: 500000 times with repair
Anode: 200000 times with repair
According to tab thickness
Output: ≥10PPm
Cutting burr: ≤0.007mm
Dimension (L*W*H): 2400*1300*2000mm
Weight: 1200kg
