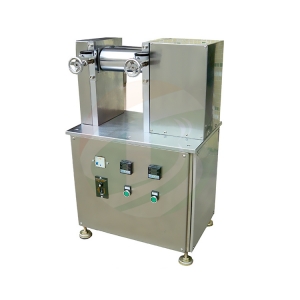

TOB TOB-GYJ-100C-S ເຄື່ອງກົດມ້ວນຮ້ອນສະແຕນເລດ (Φ100*200mm)
Working Voltage: 110V / 220V AC single phase selectable
Power: 900W Total
Structure
1, Heavy duty steel frame, gears and handle
2, Φ100mm Dia. x 200mm width Rollers made from hardened tool steel (HRC > 62) with Cr electroplated coating
3, Dual micrometer for accurate thickness adjustment in range 0 - 1.5mm Maximum
Roller
Dimensions: 100mm(Dia.) x 200mm(W)
Material: Made from hardened tool steel (HRC > 62) with Cr electroplated coating. With finish > 0.8
Rolling press accuracy:≤±0.005
Roller surface hardening depth:5mm
Heating Temperature: 10-80℃
Temperature Control Accuracy: +/-5℃
Max pressure: 3T
Rolling press thickness: 0-1.5mm adjusted with Dial gauge
Rolling press width: Max 200mm, Customized
Rolling press speed: 0-20m/min adjustable
Weight:95kg
Application Notes: This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise.
1, Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting
2, Coated Rust-proof oil if machine were to be unused for a long period of time
3, The minimum thickness of the rolled sheet should depend on the physical property of the materials.
