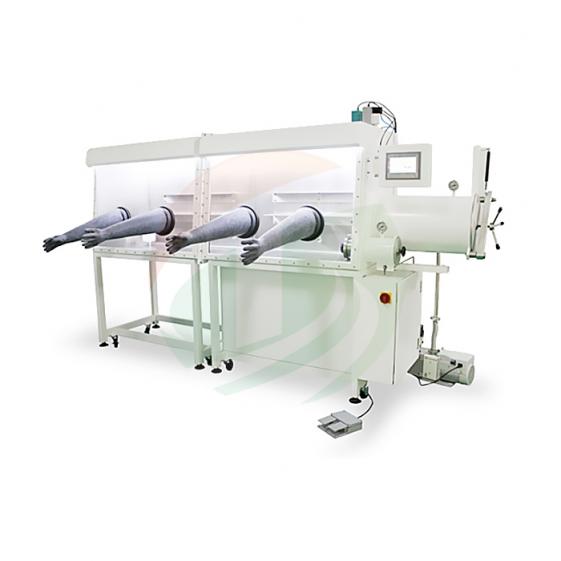

Glove Box
Dimensions: 2440(96”)mm wide x 750)mm(29.5” deep x 900mm (35.4”)high, Stand 900mm(35.4”) high
Material for Box:3mm thick. 304 stainless steel, acid resistant
Windows - Safety Glass
Glove Ports – POM (Polyoxymethylen Plastic) 220mm(8.7”) diameter - Double O-ring sealed on each glove.
Gloves - Butyl - 8” cuff diameter - .015” Thick - 32” Length
Dust Filter - 0.3 µm - 1 gas inlet and 1 gas outlet filter
Shelves - Stainless - 2 layers - Mounted inside.
External Fluorescent Lights - 2 sets
One - Electric Feed-through - Seven- Blind Flanges KF 40
Main Antechamber
One - Large Antechamber - 304 Stainless Steel - 360mm(14.2”)Diam. - 600mm(23.6”) Long (R or L)
Sliding Tray on Stainless drawer slides
Spindle Lock Door with Vertical Operation
Touch Screen - Automatic via Solenoid
Mini Antechamber
One - Mini Antechamber - 304 Stainless Steel - 150mm(5.9”) Diam. - 300mm(11.8”) Long (R or L)
Screw Lock Door
Manual Operation via Hand Valve
Gas Purification
Removal of H2O and O2.
Gas Container - 304 Stainless Steel
Absorber Unit: Copper Catalyst: 4.5Kg - Molecular Sieve: 4.5Kg
Attainable Purity: H2O - Less than 1ppm; O2 Less than 1ppm
Capsulated Blower - 90 cubic meters/hour with frequency converter
Regeneration - PLC controls all processes including heating, filling mixed gas (working gas / 5-10%H2 mixture), etc.
System Control
PLC (Programmable Logic Controller).
Siemens 7 inch color touch screen
The pressure can be set between +/- 10mbar. If the pressure goes over +/- 12mbar the system with protect itself automatically.
Vacuum Pump: Rotary Vane Pump. Capacity is 8 cubic meters/hour. Dual Stage portion with Ultimate vacuum at 3 x 10-2mbar
Organic solvent adsorber: Size: placed in the box, diameter 136mm, height 256mm, filled with 2kg activated carbon, can quickly change the material, and does not destroy the high purity atmosphere.
Increase the organic solvent adsorption device
Located in a independent purification cabinet
Dimensions: diameter 237mm, height 407mm, thickness 0.3mm
Material: 304 stainless steel
Filled with 9kg high-performance activated carbon
