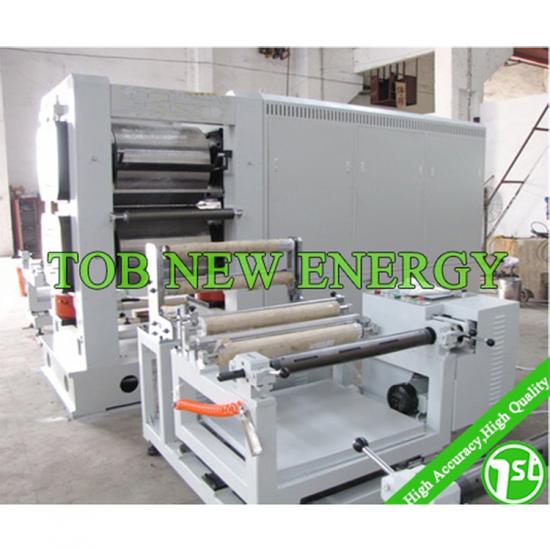

Source voltage: 380V, 50HZ Or customized
Power: 15KW
Calender roller size: φ500mm×550mm
Roller surface finish: 0.2um
Roller hardness: HRC65-68, The depth of hardening≥18MM
Rolling press speed: 2～11rpm, adjustable
Max work pressure: 500KN-3000KN
Air compressor: 0.5-0.7Mpa, 0.04M3/min
Machine weight: 12T
Dimension:
Rolling press machine : 3100*1300*2070mm
Total dimension : 6000*3100*2070mm
Winding/unwinding parameter
1, Electrode with 76mm diameter size, with biggest electrode diameter 450mm. Width 520mm
2, Tension adjustment : 25N
3, Correction accuracy ≤±0.5mm
Advantage
1, Electrode rolling press way: adopt clearance and preloading continuous rolling way;
Preloading adopts hydraulic pressure method with the biggest preloading pressure 3000 kn,
using a hydraulic constant pressure, clearance works,
gas liquid pressurization way produce oil pressure;
Clearance adjusting range: 0-2 mm
2, Man-machine interface input adjustment change oil pressure of roller mill roll gap
