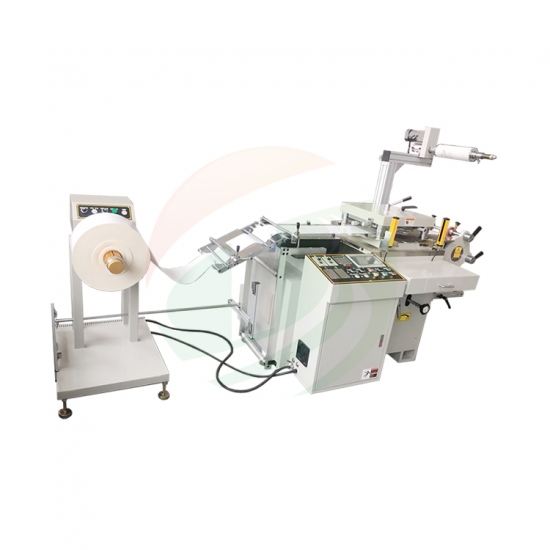

TOB TOB-DMQ-350 ຫ້ອງທົດລອງອັດຕະໂນມັດ Electrode Die Cutter ເຄື່ອງ (340*280mm)
Maximum feed width: 350mm
Maximum processing area: Automatic punching 340*280mm (manual punching 350*350mm）
Equipment running speed: 1000-9000 times/h
Die thickness requirements: thickness > 8mm
Feed control: Feeding speed and step adjustment
Shipping distance accuracy: ±0.1mm
Safety equipment: Infrared grating protection and safety shield
Feed step accuracy: ＜0.1mm
Operation interface: Intelligent human machine interface
Roll material weight: ＜50kg
Roll material outer diameter: ＜400mm
Punching knife life: 1-5 million times (depending on the quality of the die and the accuracy of the machine）
Burr degrees: ＜0.02
Feed roll diameter: 3 inches (inside diameter)
Waste recycling: Automatic waste separation and recovery device
Operating mode: Auto/manual mode
Control System: Intelligent microcomputer control
Total power: 3.6KW
Power voltage: AC220V
Machine weight: 1500kg
