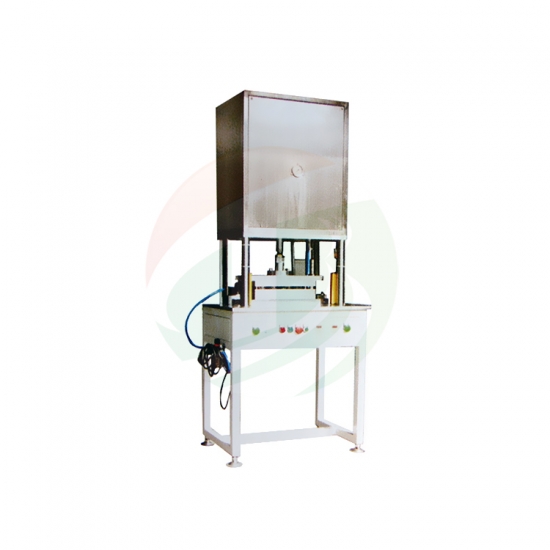

TOB TOB-CXJ200 Pouch ເຄື່ອງກອບເປັນຈໍານວນ (200*200*6mm)

Source voltage: AC 220V/110V, 50/60HZ

Power: 100W

Suitable aluminum film thickness: 0.1-0.2mm

Suitable aluminum film size: 200*200mm(L*W), customized, with punching depth ≤6mm

Output: 200-450EA/H

Output pressure: 0-5T, Adjustable

Air source: 0.5-0.7MPa

Mold materials: S136 Die steel

Dimension(L*W*H): 800*500*1850mm

Weight: About 220kg

Datasheet

Advantages

1. This punching forming machine adopts imported pneumatic, electrical components, control cylinder pressure stamping forming mold.

2. Mold using high quality die steel materials, stretching out the product contour artistic, rounded and smooth.

3. Work station is equipped with Safety grating protection device, If with operators across the scope of security emergency stop automatically.
