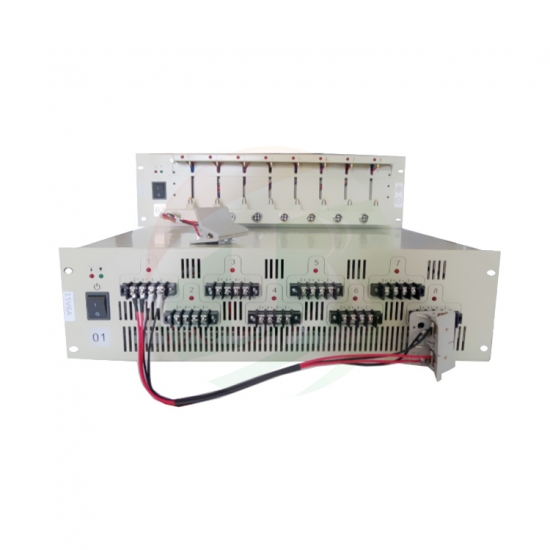

TOB TOB-BTS-15V6A ລະບົບການທົດສອບຊຸດຫມໍ້ໄຟ (12mA~6000mA,15V)
Source voltage: AC110V-220V±10% Customized, 50/60HZ
Input impedance : ≥1MΩ
Input power: 1088W
Channel Characteristics : Constant current source and voltage source adopt double closed loop independent structure
Channel control mode: Independent control
Voltage range per channel
Charge : 3mV-15V Discharge : 2.5V-15V
Accuracy : ±0.1%
Current range per channel
Charge : 12mA-6A Discharge : 12mA-6A
Accuracy : ±0.1%
Output power per channel: 200W
Time
Current response time : 0-6A : 20ms
Step time range: 1s-365*24h,Time format : 00:00:00(H:Min:S)
Record condition
TimeΔt ：1-60000s VoltageΔU : 40mV-20V
CurrentΔI : 20mA-10A
Charging mode: Constant current charge, constant voltage charge, constant current and voltage charge
Discharging mode: Constant current discharge,constant power discharge
Conditions of constraint: Time, voltage, current, capacity
Cycle
Cycle range: 1-65535 times
Steps pur cycle: 254
Protection : Power-down data protection,off-line test function and Safety condition setting protection
Voice : ≤85dB
Communication interface: Serial ports
Channel number per unit: 8
Dimension(L*W*H): 485*508*263mm
Working temperature/humidity: -10-40℃ ≤70%RH
