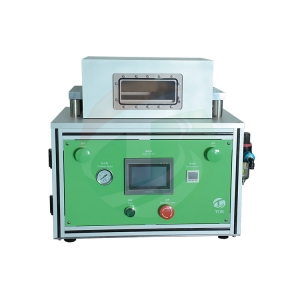

TOB TOB-BFZ200 ແບດເຕີລີ່ຮອງເຄື່ອງຜະນຶກຄວາມຮ້ອນສູນຍາກາດສໍາລັບ pouch Cell (50W, -90Kpa ~ 0)
Cavity made of aluminum alloy, corrosion-resistant, solid structure
Vacuum up to-90Kpa ~ 0 adjustable (the buyer-owned vacuum pump)
Head temperature: RT ~ 250 ℃, temperature adjustable
Temperature control accuracy: ± 1.5 ℃
Heat sealing pressure: 0 ~ 7Kg / cm2 adjustable
Sealing time: 0 ~ 99 seconds adjustable
Edge width: 5mm (according to customer requirements)
The maximum edge size: 200mm
Head parallelism: with triple carbonless paper, head pressure at 0.6MPa, the temperature at 200 ℃ when the seal out of the seal
Air consumption: about 0.2L compressed gas / each time
Pneumatic working speed: ≥ 180 times / h
Power: 300w heat pipe, heating when the power consumption of about 0.6KW
Power supply: 220V / 50Hz
Power: 50W
Compressed air source: 0.5 ~ 0.7Mpa
Dimension Working Department: 520mm * 350mm * 650mm
