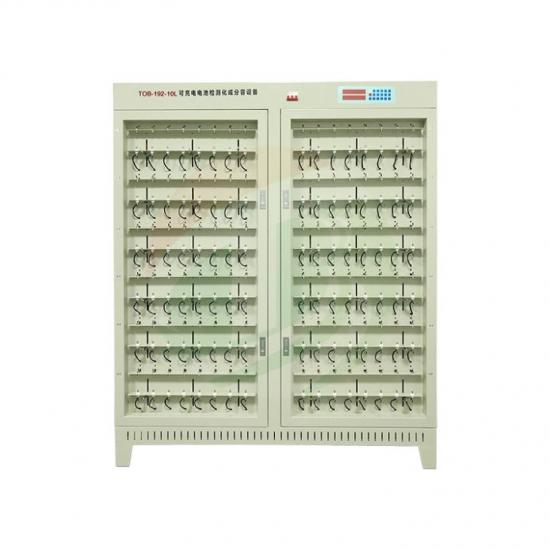

TOB TOB-192-10L ສາກໄຟເຄື່ອງສໍາລັບການສ້າງແບດເຕີລີ່ແລະການຈັດລໍາດັບ (192 Channels 5V10A)
Channel No.: 192
Workflow control method: Whole Cabin control
Charging model: Constant voltage,constant current
Charge cutoff condition: Voltage, current, time, capacity
Discharge mode: Constant current
Discharge cutoff condition: Voltage, time, capacity
Sampling inspection cycle: ≤6s
Voltage measurement range: 0~5V，Resolution 1mV
Battery voltage range: Charge：0~4.5V，Discharge：4.5~2V
Constant voltage range: 3~4.5V
Voltage accuracy: ±（0.05%RD+0.1%FS）
Current range: Charge:0.05-10A，Discharge :0.05-10A，Resolution:1mA
Current accuracy: ±（0.1%RD+0.1%FS）
Time Set Range: Any setting within 0~30000 minutes, the time unit is min
Time accuracy: ≤±0.1%
Clamp type: Four-wire method fixture
Clamp adjust range: 10mm-125mm
Support battery type: Cylinder cell
Voltage source: 3 phase 4 wire ， AC380V±5% ， 50HZ ， Power consumption15KW
communication method: RS485，Baud rate 57600
Machine size: 1680mm（length）×600mm（width）×1710mm（height
working environment: Temperature：0-40℃，related temperature≤85%
Full load operating current: Phase line up to 18A, zero line up to 30A
Device startup current: Air switch closing moment about 60A
N.W: About 350kg
