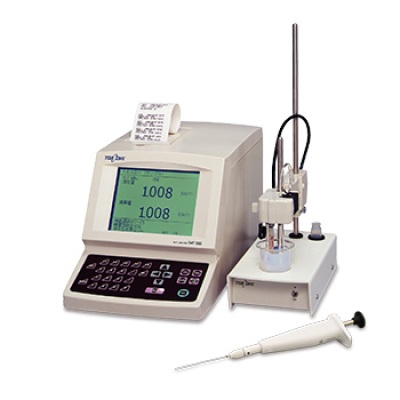

TOA DKK SAT-500 Salt Analyzer

Measuring Method: Coulometric titration method (end point is detected by potential difference).

Display: Graphic LCD panel (320 × 240 pixels) with back light. English/Japanese language is selectable.

Sample Injection Volume: 2, 20, 200 µL or OTHER (1 to 9999 µL)

Measuring Ranges (displayed by %):

2 µL dispenser: 0.00 to 49.99%, lower detection limit 2.0%

20 µL dispenser: 0.000 to 4.999%, lower detection limit 0.2%

200 µL dispenser: 0.0000 to 0.4999%, lower detection limit 0.02%

OTHER dispenser volume: 0.0000 to 99.99% (depends on calibration solution concentration)

Concentration Conversion: NaCl/Cl- switching

Concentration Units: % (W/V), % (W/W), mg/L, mol/L

Repeatability: 0.5% or less in C.V. value at 1% of NaCl standard solution with 20 µL micro dispenser

Calibration: Automatic single point calibration using NaCl standard solution with a concentration corresponding to the injection volume.

Measurement Start: Automatic start on detection of potential change or manual start by pressing START key.

Printer: Built-in thermal printer

Data Memory: 300 data points (with backup)

Output: RS-232C (can be connected to a PC or external printer)

Operating Temperature Range: 10 to 35°C (avoid sudden temperature changes)

Power Source: AC100 to 240V, 50/60Hz

Power Consumption: Approx. 20VA (maximum)

Dimensions, Weight:

Main Unit: Approx. 190(W) × 192(H) × 385(D) mm, Approx. 3.3 kg

Measurement Section: Approx. 110(W) × 370(H) × 220(D) mm, Approx. 1.1 kg

Datasheet
