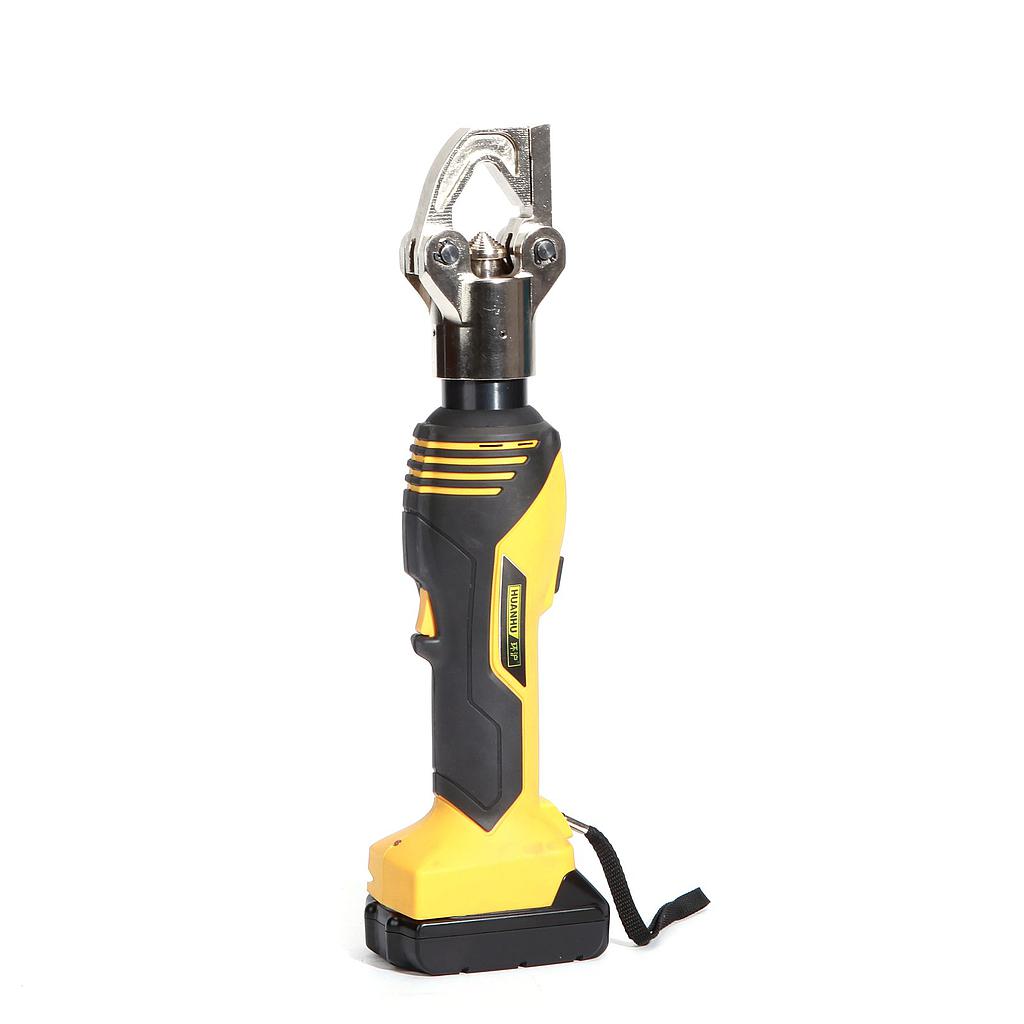

TLP HHZD-240DY ເຄື່ອງມືບີບອັດໄຮໂດຼລິກທີ່ໃຊ້ແບັດເຕີຣີ (7T; 30mm)

Hydraulic Ram Output: 7 Ton

Ram Stroke: 30 mm

Battery Capacity: 160 crimping cycles

Crimping Range: 16 – 240 mm²

Crimping Time: 3 – 6 s (depending on cable size)

Battery: 18 V / 2.0 Ah Li-ion

Weight: 9.5 kg

Packing Size: 690 × 305 × 115 mm

Characteristics:

●Flip-top head enables quick change of crimping dies.

●Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time.

●10000+ cycle service life.

●Ram retracts to original position automatically when operation is complete.

●Manual retraction in case of need.

●Audible buzzer and red LED light in case of error.

●Quick motor stop for higher user safety.

●Powerful 18V Li-ion battery with low battery warning.

●Ergonomic 2-component grip area and balanced center of gravity.

●Sturdy plastic storage box.
