Cylinder Capacity @700bar
+ Ton: 30
+ kN: 309
Stroke (mm): 50
Effective area (cm²): 44.2
Oil capacity (cm³): 240
Closed height A (mm): 172
Extended height B (mm): 222
Outside Dia D (mm): 110
Inside Dia E (mm): 75
Piston Rod Dia F (mm): 62
G.W. (kg): 5.1
Standard Saddle Dia J (mm): 49
Saddle Protrusion K (mm): 2
Handle: No
Recommended pump: HHB-700C

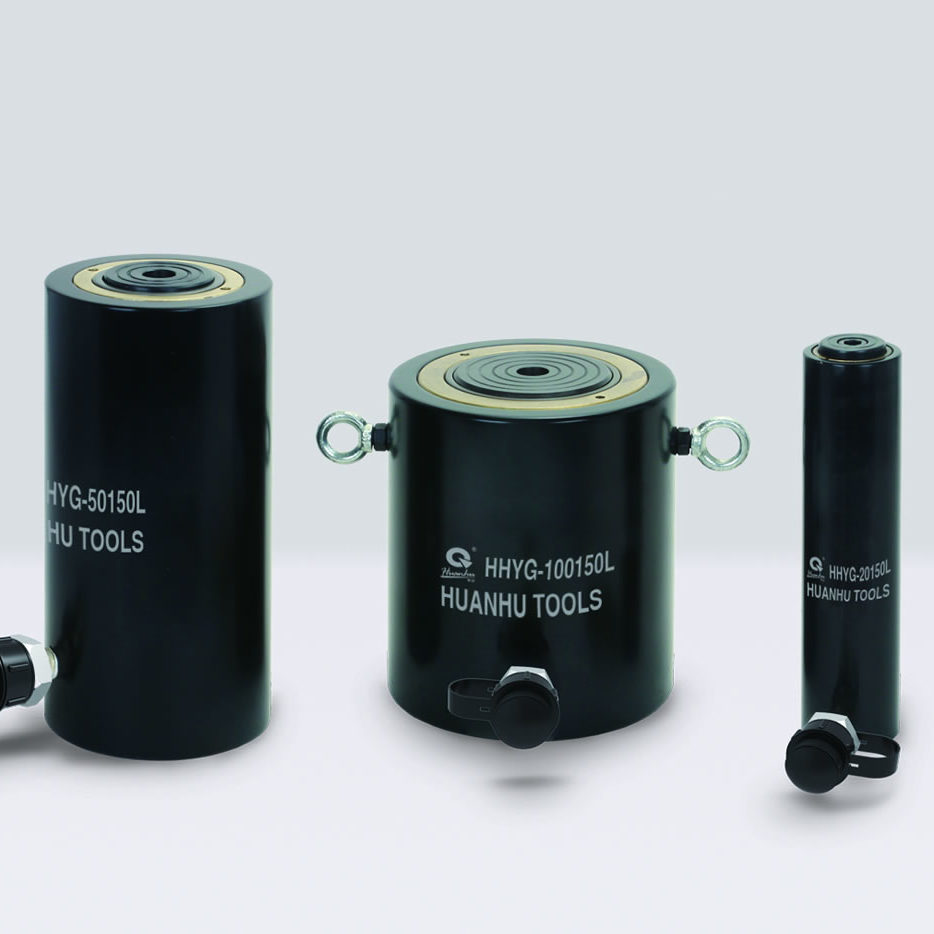

Single-acting Aluminum Cylinders
Working pressure: 700bar
Half the weight of steel cylinders of comparable capacity
Aluminum body resists sparking in explostive environment.
Hard-coated aluminum piston rod and cylinder bore resist wear and corrosion.
Lightweight for maxium portability.
Hard-coat finish on all surfaces resists damage and extends cylinder lift.
Single acting, spring return.
Each cylinder has an HH-II R2 3/8 male half coupler and dust cap.
Each cylinder has a flat grooved saddle. Tilt saddle is available on request.
