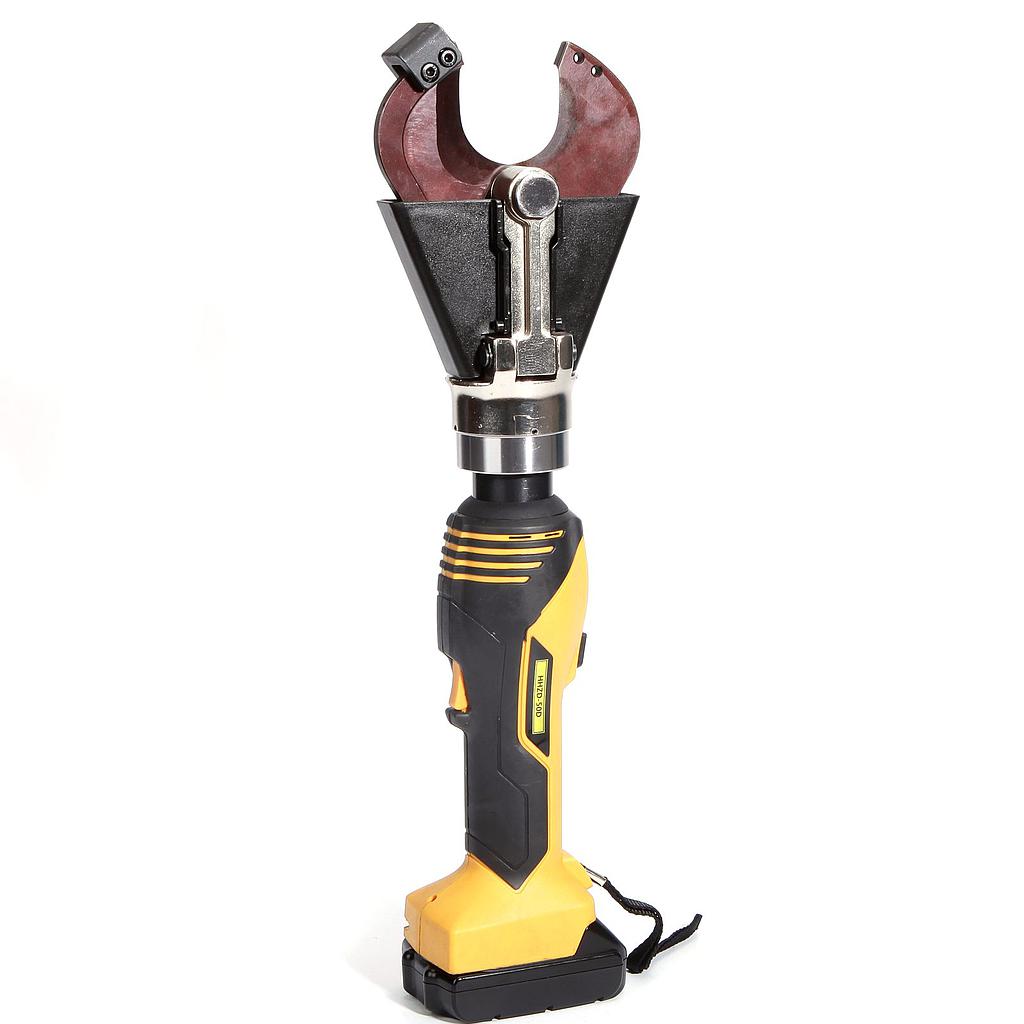

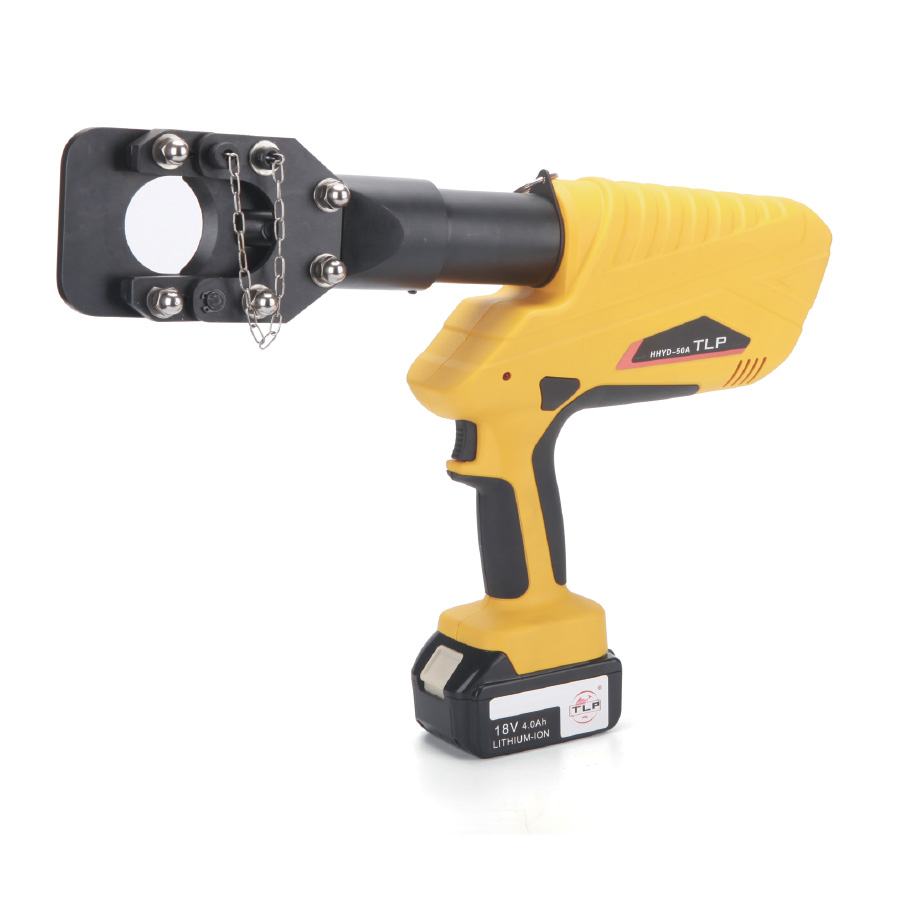

TLP HHYD-50A ເຄື່ອງຕັດສາຍໄຮໂດຼລິກທີ່ໃຊ້ແບັດເຕີຣີ (8.5T; 50mm)

Output Force: 8.5 Ton

Stroke: 50 mm

Battery Capacity: 70 cutting cycles

Max. Cutting Range: Ø50 mm (Copper, Aluminum and Armored cable)

Battery: 18V / 4.0Ah Li-ion

Charging Time: 2 hours

Battery Quantity: 2 pcs

Charger: 1 pc

Sealing Ring of Cylinder: 1 set

Weight (kg): 14.5

Packing Size (mm): 585 × 500 × 170

Characteristics:

Cuts armoured Al and Cu cables.

Special blades for cutting ACSR conductors are available on request.

●Closed cutting head with bolt interlock, rotatable, flip top style

●Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time.

●10000+ cycle service life.

●Press manual reset button to retract the ram when cutting is complete.

●Press manual reset button to retract the ram in case of error.

●Ram retracts to original position automatically when applied force exceeds rated capacity.

●Audible buzzer and red LED light in case of error.

●Quick motor stop for higher user safety.

●Powerful 18V Li-ion battery with low battery warning.
