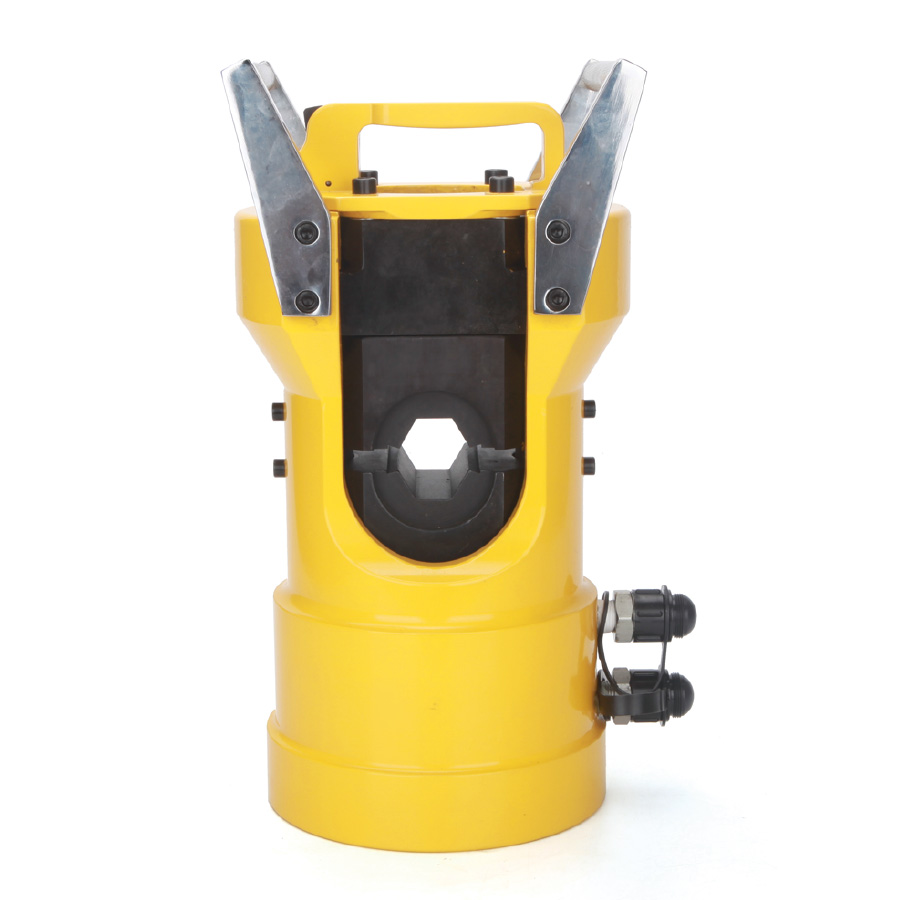

TLP HHY-630F ຫົວບີບໄຮໂດຼລິກ (23T; 22mm)

Output Force (ton): 23

Ram Stroke (mm): 22

Crimping Range (mm²): 150 – 630

Crimping Dies (mm²): 240, 300, 400, 500, 630

Crimp Pattern: Hexagonal type

Gross Weight (kg): 15

Packing Size (mm): 185 × 170 × 300

Characteristics:

For use in indoor and outdoor power distribution and transmission projects, splicing fittings, overhead and underground conductors.

●Yoke-type head design is solid and durable.

●Convenient handle makes handling and hoisting easier.

●Positive die locking mechanism holds dies firmly in place.

●Supplied with R2 3/8 male coupler and dust cap.

●Requires an external hydraulic pump with rated oil pressure of 700 bar.

●Single action cylinder with spring return.
