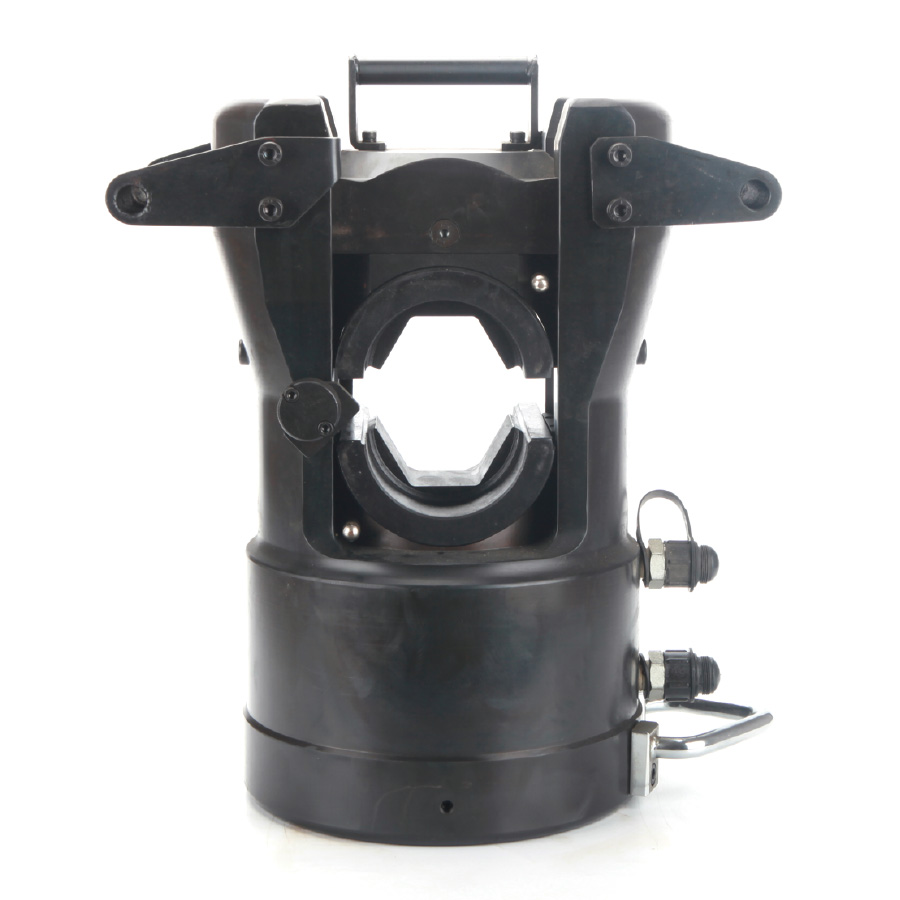

Output Force (ton): 200
Ram Stroke (mm): 40
Crimping Range (mm²): 150 – 1440
Crimping Dies (mm²): 630, 800, 1000
Crimp Pattern: Hexagonal type
Gross Weight (kg): 110
Packing Size (mm): 280 × 380 × 500
Characteristics:
Double-acting, 200 Tons
Crimping Range:
Copper sleeve up to 86 mm O.D.
Aluminum sleeve up to 100 mm O.D.
Steel sleeve up to 50 mm O.D.
●Sturdy construction for safe working.
●Simple design for easy maintenance.
●Ram retracts hydraulically, the retracting time is 1/3 of spring return.
●Removable die cap design helps operator an easy insertion and removable of the connector.
●Functional handles for easy carrying and repositioning.
●Wide crimping area reduces crimping cycles and minimizes curving and tensioning of conductors.
●Requires an external double acting hydraulic pump with rated oil pressure of 700 bar.
●Designed as a portable tool for installing compression sleeves and terminals for transmission construction and maintenance work.
●Comes delivered in sturdy wooden box.
