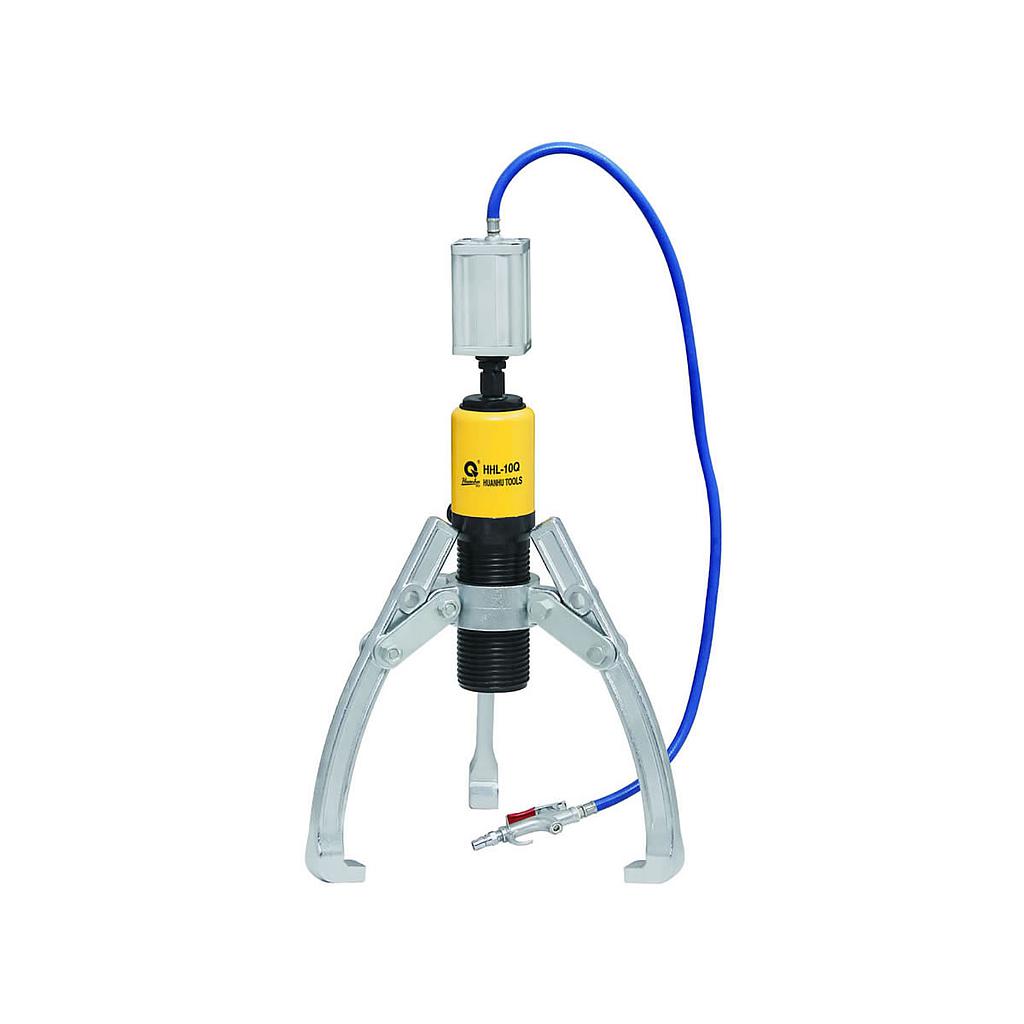

TLP HHL-5Q ເຄື່ອງດຶງໄຮໂດຼລິກອາກາດ (5T)

Output: 5 ton

Spread: 200 mm

Max reach: 140 mm

Ram stroke: 50 mm

Dimensions (E/F/G/A/B/C): 45 / 23 / 106 / 12.5 / 22.5 / 26 mm

Weight: 7.3 kg

Packing size: 60 × 15 × 17 cm

Characteristics:

Air Hydraulic Pullers are used where air compressor is the preferred source of power, featuring time- and labour-saving operation, and increased productivity.

●Use with 2 or 3 jaws.

●High quality,forged steel jaws and crosshead provide superior reliability and service.

●Air hydraulic control allows fast,efficient and safe pulling.

●High force hydraulic system for effortless pulling of large components.

●More efficent pulling,as one man can do the job where manual pullers ofter require two operators.

●Spring loaded live centering cone.
