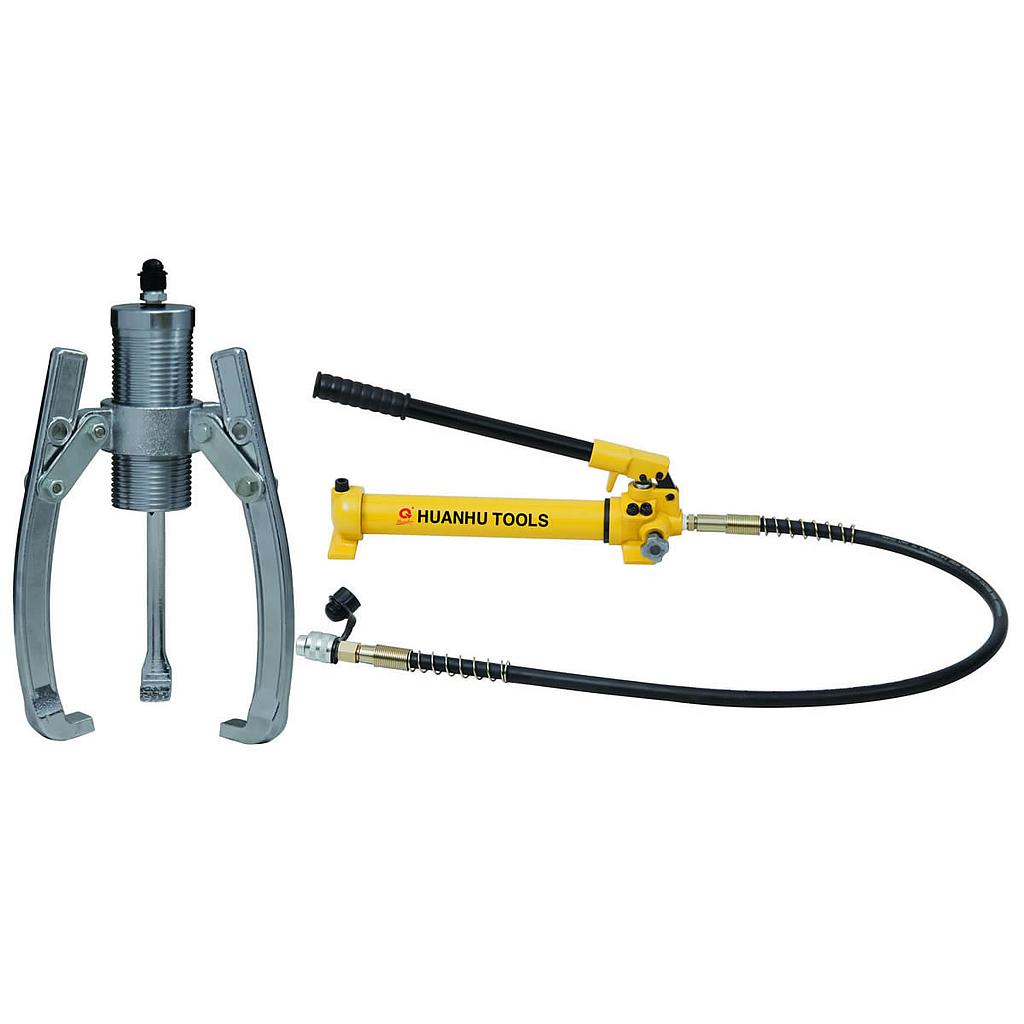

TLP HHL-5F ຊຸດເຄື່ອງດຶງໄຮໂດຼລິກ ແລະ ປໍ້າມື (5T)

Output: 5 ton

Spread: 200 mm

Max reach: 140 mm

Ram stroke: 50 mm

Dimensions (E/F/G/A/B/C): 45 / 23 / 106 / 12.5 / 22.5 / 26 mm

Pump model: HHB-700C

Weight: 10.2 kg

Packing size: 48 × 26 × 13 cm

Characteristics:

Easy and quick set-up.

The hydraulic hand pump can be detached for other tansks requires dependable hydraulic power, assuring maxinum return on your invenstment.

Hand pump with hose allows operation from a distance, which enhances safety and reduces operator fatigue.

●Use with 2 or 3 jaws.

●High quality,forged steel jaws and crosshead provide superior reliability and service.

●Precise hydraulic control allows fast,efficient and safe pulling.

●High force hydraulic system for effortless pulling of large components.

●More efficent pulling,as one man can do the job where manual pullers ofter require two operators.

●Spring loaded live centering cone.
