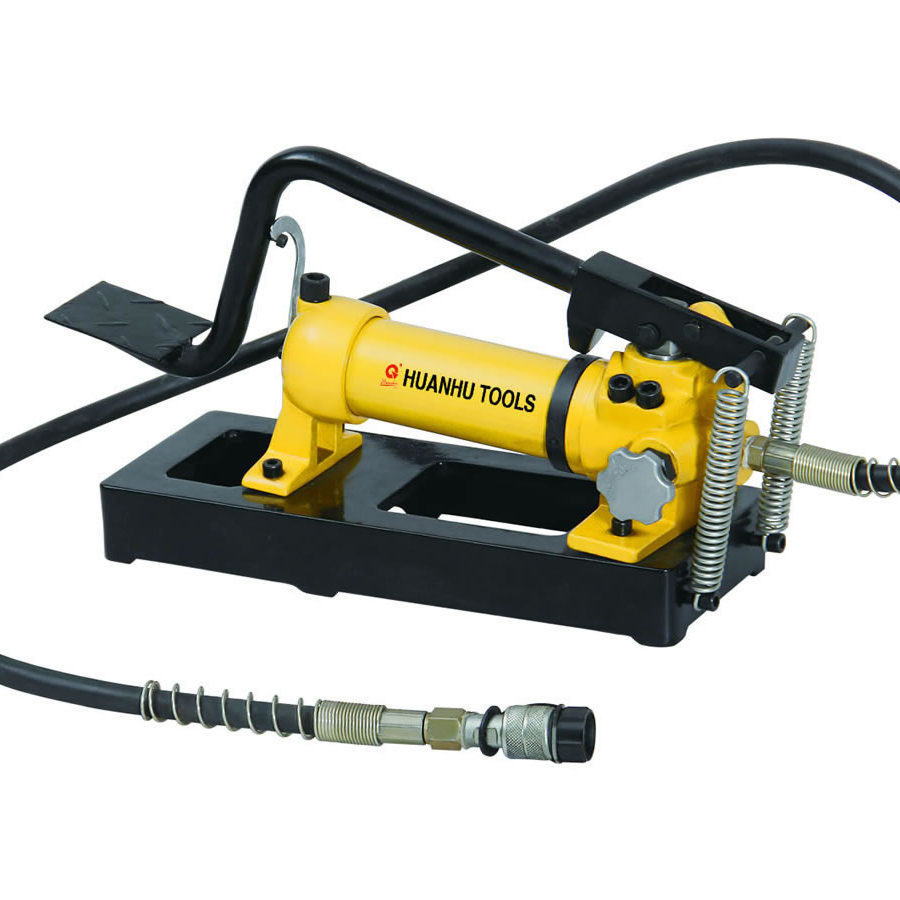

TLP HHB-800 ປໍ້າໄຮໂດຼລິກທີ່ໃຊ້ຕີນ (20 / 700 bar)

Working pressure (low/high): 20 / 700 bar

Oil displacement per stroke (low/high): 13 / 2.3 cm³

Reservoir capacity (oil/usable): 600 / 350 cm³

Dimensions (L × B × H): 445 × 145 × 250 mm

Weight: 12.8 kg

Characteristics:

Working pressure 700 bar

These pumps are one-way for single-acting hydraulic applications

●Robust, durable and compact.

●For handsfree operation.

●Foot pedal lock and lightweight construction for easy carrying.

●Two-speed operation reduces foot pedal strokes.

●Large hand knob release valve for controlling load descent.

●Internal pressure relief valve for overload protection.

●Supplied with high pressure hose 1.8 meters and R2 3/8 quick coupler with dust cap.
