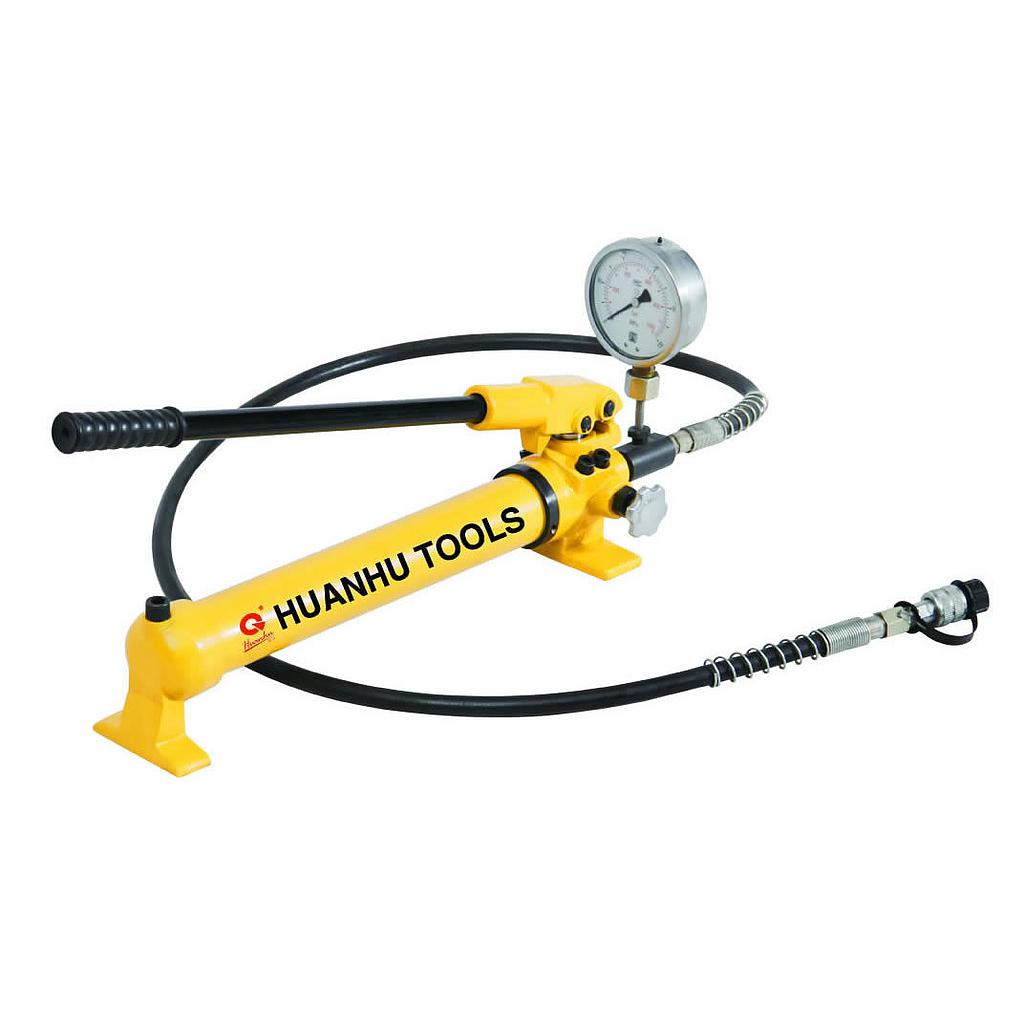

TLP HHB-700E ປໍ້າໄຮໂດຼລິກທີ່ໃຊ້ມື (20 / 700 bar)

Pump type: One-way

Working pressure (low/high): 20 / 700 bar

Oil displacement per stroke (low/high): 13 / 2.3 cm³

Reservoir capacity (oil/usable): 2500 / 2000 cm³

Dimensions (L × B × H): 710 × 150 × 210 mm

Weight: 13 kg

Characteristics:

Working pressure 700 bar

Square and large oil tank

HHB-700E is one-way pump for single-acting hydraulic application.

●Robust and durable construction.

●Handle lock for easy transport.

●Two-speed hydraulic system for fast and easy operation.

●Reduced handle effort and ergonomic grip for less operator fatigue.

●Internal pressure relief valve for overload protection.

●Large oil capacities to power a wide range of cylinders or tools.

●Supplied with high pressure hose 1.8 meters and R2 3/8 quick coupler with dust cap.Characteristics:

Working pressure 700 bar

Square and large oil tank

HHB-700E is one-way pump for single-acting hydraulic application.

●Robust and durable construction.

●Handle lock for easy transport.

●Two-speed hydraulic system for fast and easy operation.

●Reduced handle effort and ergonomic grip for less operator fatigue.

●Internal pressure relief valve for overload protection.

●Large oil capacities to power a wide range of cylinders or tools.

●Supplied with high pressure hose 1.8 meters and R2 3/8 quick coupler with dust cap.
