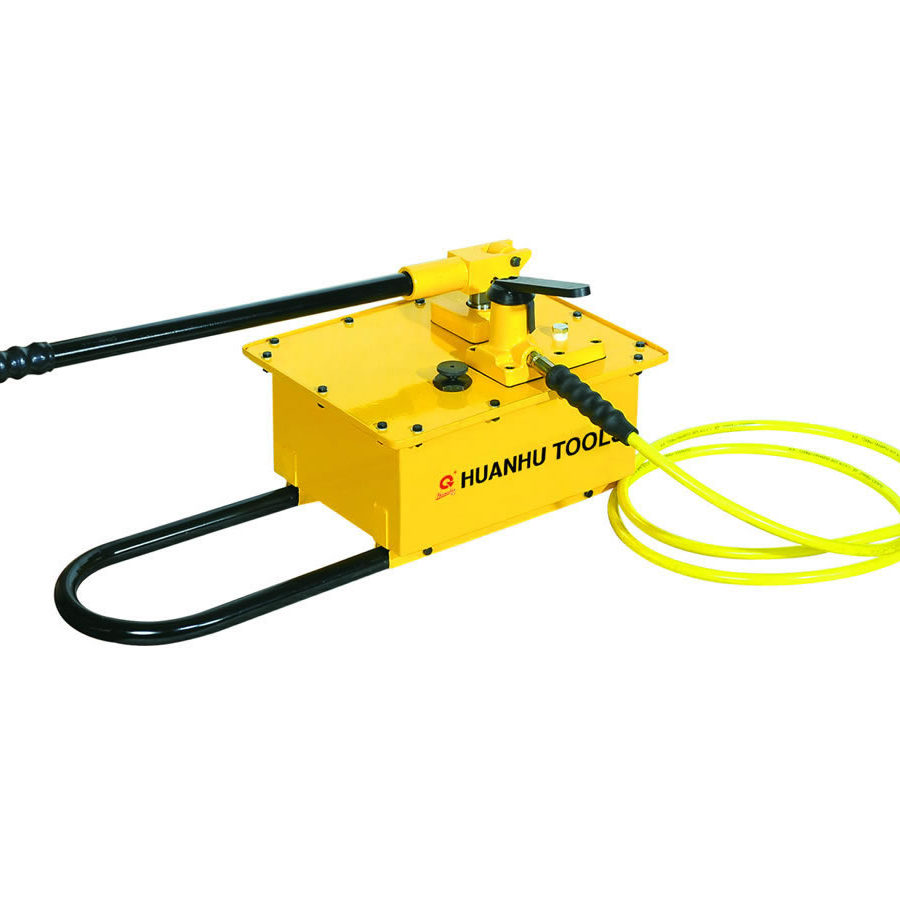

TLP HHB-7000S ປໍ້າໄຮໂດຼລິກທີ່ໃຊ້ມື (20 / 700 bar)

Pump type: Two-way

Working pressure (low/high): 20 / 700 bar

Oil displacement per stroke (low/high): 126.2 / 4.75 cm³

Reservoir capacity (oil/usable): 7500 / 7000 cm³

Dimensions (L × B × H): 740 × 310 × 330 mm

Packing size: 83 × 38 × 35 cm

Weight: 27.5 kg

Characteristics:

Working pressure 700 bar

HHB-7000 is one-way pump for single-acting applications.

HHB-7000S is two-way pump for double-acting applications.

Supplied with high pressure hose 1.8 meters and R2 3/8 quick coupler with dust cap

●HHB-7000 and HHB-7000S feature extra large reservoirs and high first-stage flow rate. These pumps are ideally suited for powering high-capacity cylinders.

●Two-speed hydraulic system for fast and easy operation.

●Large release valve handle for controlling load descent.
