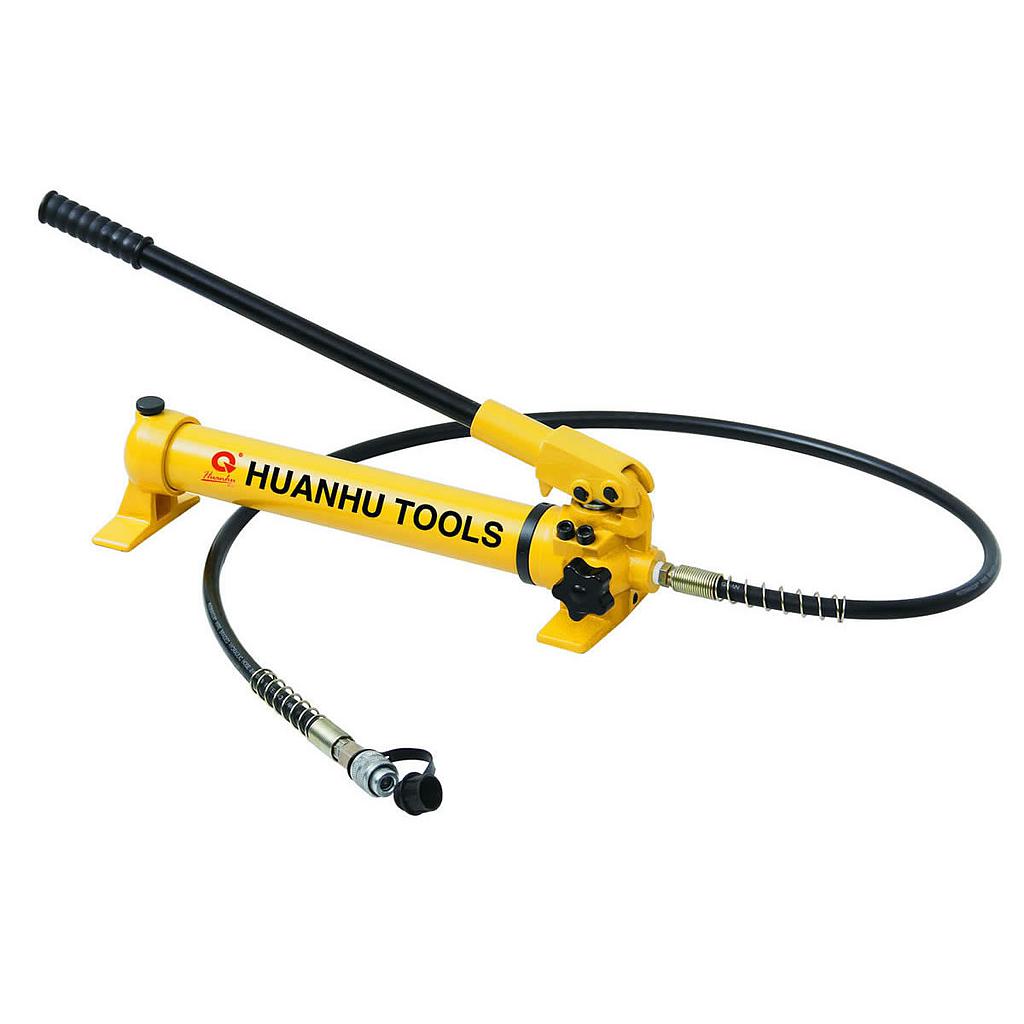

TLP HHB-700 ປໍ້າໄຮໂດຼລິກທີ່ໃຊ້ມື (20 / 700 bar)

Working pressure (low/high): 20 / 700 bar

Oil displacement per stroke (low/high): 13 / 1.6 cm³

Reservoir capacity (oil/usable): 1000 / 700 cm³

Dimensions (L × B × H): 600 × 120 × 200 mm

Packing size: 73 × 19 × 19 cm

Weight: 10.6 kg

Characteristics:

Working pressure 700 bar

One-way for single-acting applications.

●Robust, durable and compact.

●Two-speed hydraulic system for fast and easy operation.

●Lower handle effort to minimize operator fatigue.

●Large and comfortable release knob for improved control of pressure release.

●Internal pressure relief valve for overload protection.

●Supplied with 1.8-meter length high pressure hose, R2 3/8 quick coupler and dust cap.
