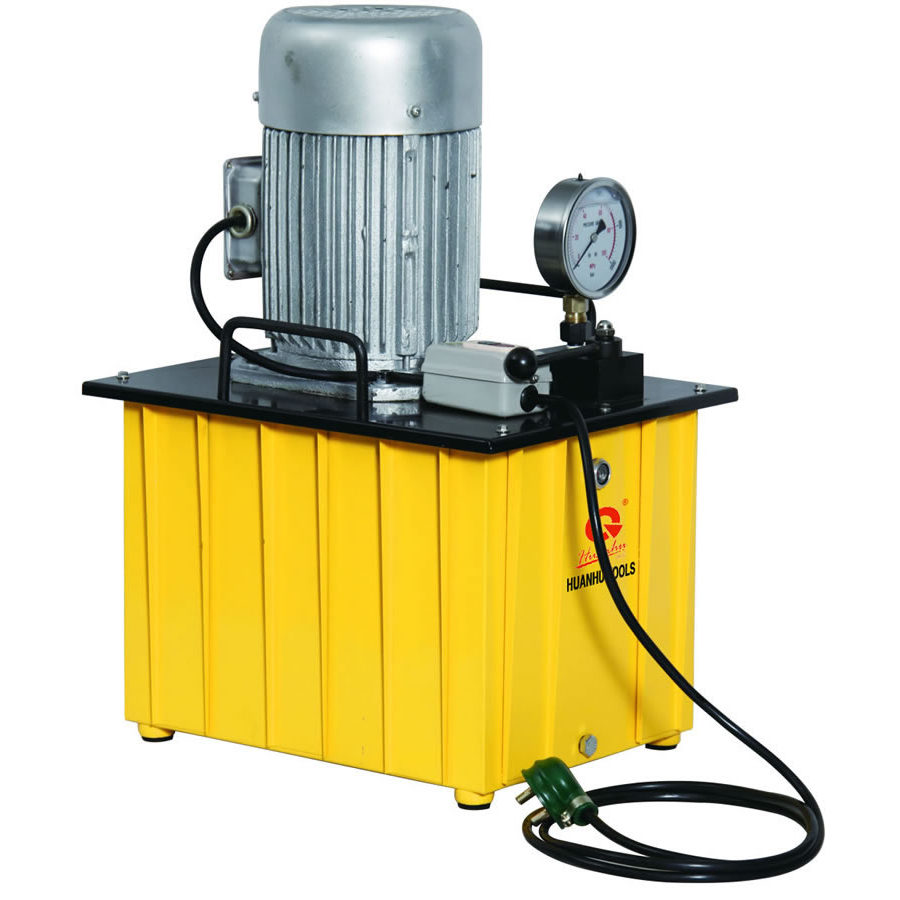

TLP HHB-630B-II ປໍ້າໄຮໂດຼລິກທີ່ໃຊ້ພະລັງງານໄຟຟ້າ (20 / 700 bar)

Pump type: Two-way

Power rating: 1.5 / 2.2 / 3.0 kW

Working pressure (low/high): 20 / 700 bar

Flow rate (low/high): 10 / 1.5 – 2.0 – 3.0 L/min

Usable oil capacity: 35 L

Dimensions (L × B × H): 455 × 355 × 630 / 660 mm

Weight: 55.4 / 62.4 / 64.4 kg

Working pressure: 700bar

Large 35 liters oil revervior

HHB-630B-II for double-acting appliations

●Two-speed operation reduces cycle time for improved productivity.

●All valves are 3 position for Advance-Hold-Retract.

●All the pumps are equipped with pressure gauge, which minimizes the risk of overloading and ensure long, dependable service.

●Manual valve and motor control.

●Internal pressure relief valve prevents overloading.

●Long, trouble free life in the most demanding work environments.

●The pumps have a very large 35 liters oil reservior, which means adequate capacity for multi-cylinder applications.

●Each pump comes with 1.5 meter hose and R2 3/8 quick coupler with dust cap.
