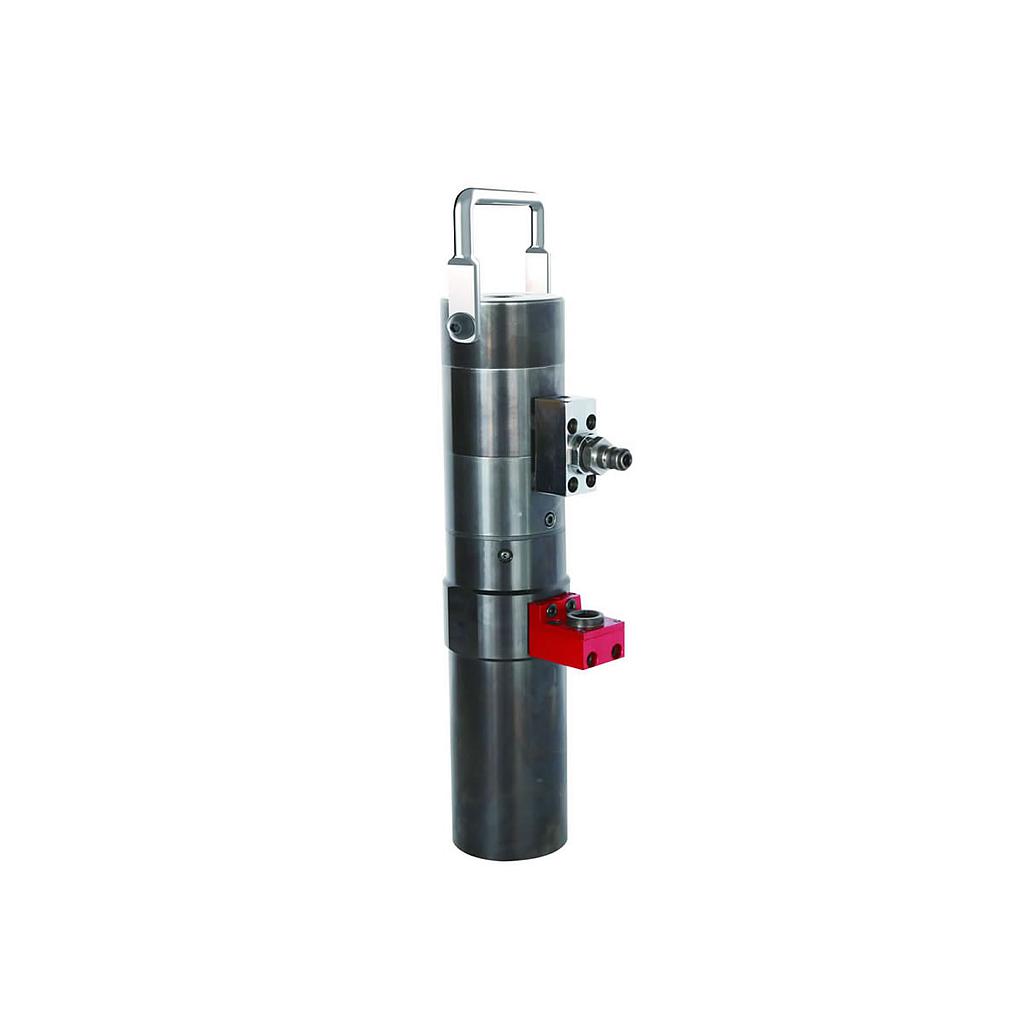

TLP HHB-2000G ເຄື່ອງດຶງ Bolt ສອງຂັ້ນຕອນ (20~2000bar)

Working Pressure (Stage 1): 20 bar

Working Pressure (Stage 2): 2000 bar

Flow (Stage 1): 32 cc

Flow (Stage 2): 1.3 cc

Oil Outlet Port: 1/4 BSP

Oil Return Port: 1/2 BSP

Usable Oil Capacity: 2200 cc

Weight: 11 kg

Packing Size: 59 × 12 × 17 cm

Characteristics:

Max working pressure: 1500bar

Specially designed for wind generator set

Two-stage cylinder design with smaller outside diameter

●Two-stage cylinder design increases the tensioning length.

●Made of special high strength steel, rust-proof and corrosion resistant surface treatment.

●Smaller outside diameter permits use in narrow space.

●Spring return and overtravel protection suits frequent operation.

●Operated by ultra-high pressure hand pump or electric pump.
