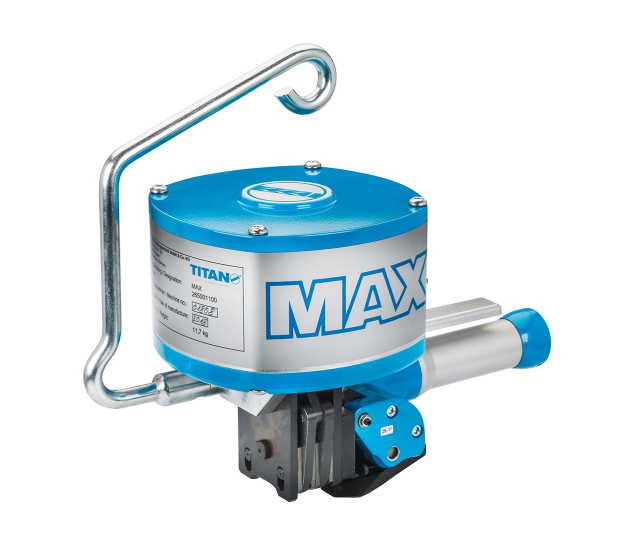

Titan MAX sealer pneumatic ສໍາລັບສາຍເຫຼັກ
Technical Data
Kind of drive (tensioning): Pneumatic
Tension force: max. 8000 N (adjustable)
Kind of drive (sealing): Pneumatic
Seal (Type): RSK 19 ; 25 ; 32
Strap feeding speed: 0.36 ft/s
Dimensions: 17.7 x 7.7 x 11.8" (L x W x H)
Weight: 25.8 lb
Air pressure: min. 5 bar flow pressure (for MEGABAND®); max. 6 bar flow pressure
Air consumption (during tensioning): 11 Nl / s
Air consumption (during sealing): 6 Nl / s
Cross-section: G 1/4 "
Handarm vibration: information currently not available
Noise level: 76 dB (A)
Strap/Joint
Type of strap: Steel strap
Strap: Automatenband; MEGABAND®
Strap width: 3/4" ; 1" ; 1 1/4"
Strap thickness: 0.031 - 0.039" (for Automatenband) ; 0.03" (for MEGABAND®)
Kind of seal: Seal-joint (double notch)
Sealing strength (depending on strap quality, strap dimensions): up to approx. 75% of the strap breaking load
