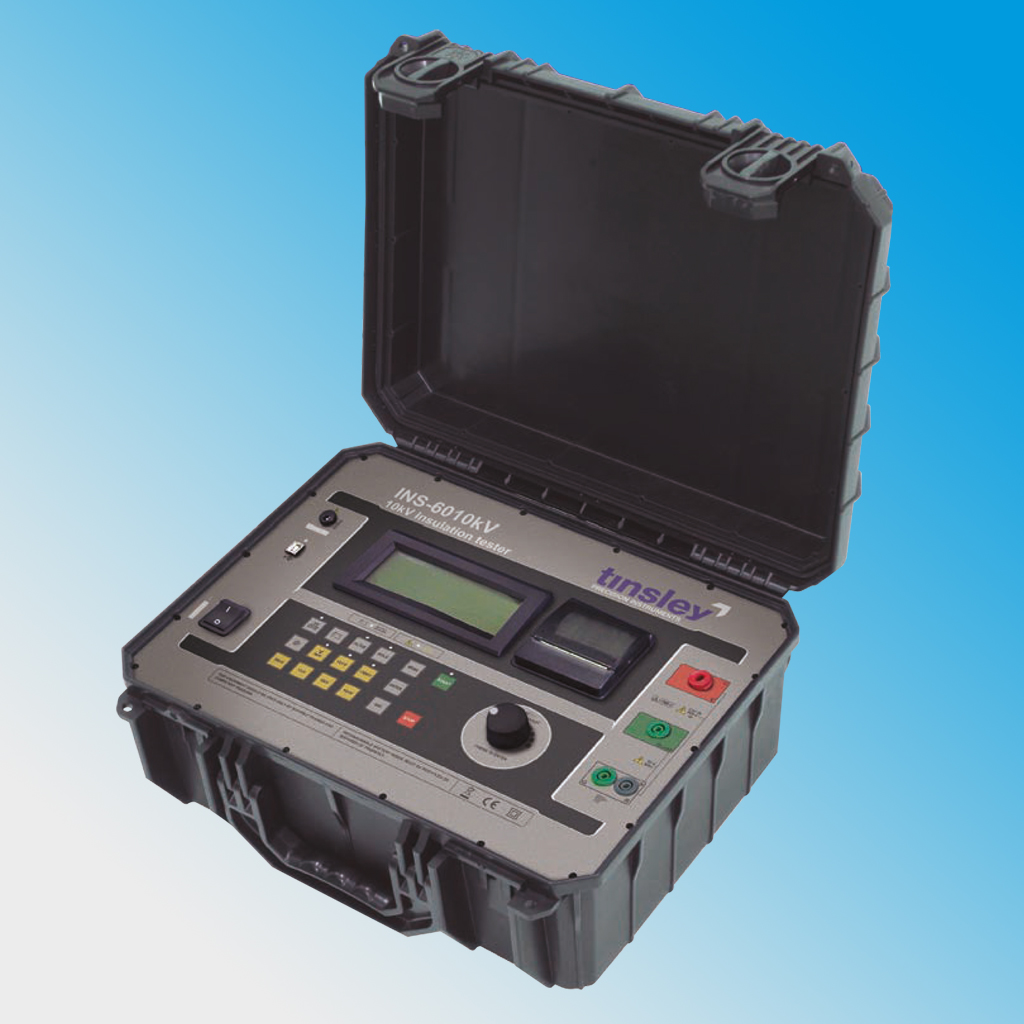

Tinsley INS-6010kV ອຸປະກອນທົດສອບການປ້ອງກັນດິຈິຕອນ
Test Voltages" 500V - 1Kv - 5Kv - 10Kv Directly, One Button Selectable. 500V To 10Kv In 25V, 100V Or 500V Steps. Dc, Negative.
Maximum Resistance Reading: 10Tω @ 10Kv.
Dc Voltmeter :15V Up To 600Vdc. Accuracy: ±(5% Of Reading + 3 Digits).
Ac Voltmeter: 15V Up To 600V R.M.S.Accuracy: ±(5% Of Reading + 3 Digits).
Overvoltage Category: Cat. Iii - 600V.
Leakage Current Measurement: 1Na Up To 1500Μa ±(10% Of Reading+ 3 Digits).
Capacitance Measurement:
50Nf Up To 10Μf @ 500V.
50Nf Up To 5Μf @ 1,000V.
30Nf Up To 2Μf @ 2,500V.
30Nf Up To 1Μf @ 5,000V.
30Nf Up To 680Nf @ 10,000V.
Accuracy: ±10% Of Reading ± 3 Digits.
Short Circuit Current: Max. 2Ma.
Test Voltages Accuracy: ± 3% Of Nominal Test Voltages On 10Gω.
Megohmmeter Basic Accuracy:
± 5% Of Reading From 1Mω To 1Tω @ 10Kv.
± 20% Of Reading From 1Tω To 10Tω @ 10Kv. (For Lower Test Voltages, The Upper Limit Will Be Reduced Proportionally).
± 20% Of Reading ± 5 Digits From 10Kω To 100Kω.
± 10% Of Reading ± 5 Digits From 100Kω To 1Mω.
Advanced Features
Automated Polarization Index Calculation
Automated Dielectric Absorption Ratio Calculation
Programmable Pass-Fail Test
Step Voltage Test
4000 Readings Memory
Switchable Filter To Remove External Noise Interference
Built-In Printer : Prints Elapsed Time, Actual Voltage And Resistance Measured Each 15 Seconds
Data Output: Usb
Built-In Chronometer: Shows Elapsed Time In Mm:Ss Format. Count Starts Automatically For Each Measurement.
Megalogg2 Software: Friendly, Easy To Use Software. Tests Are Represented In Graphic And Tabular Views. With Automatic Report Generator, Including The Operator'S Commentaries.
Environmental Protection: Ip54 (With Closed Lid)
Safety Class: In Accordance With Iec 61010-1.
E.M.C. :In Accordance With Iec 61326-1
Electro Magnetic Irradiation Immunity: In Accordance With Iec 61000-4-3.
Electrostatic Immunity :In Accordance With Iec 61000-4-2.
Power Supply : Internal Rechargeable Battery 12,8V - 6Ah.
Battery Charger : Ac Adapter 18V - 2A.(Input 90 - 260V~ 45-65Hz).
Operatingtemperature Range: -5°C To 50°C.
Storage Temperature Range: -25°C To 65°C.
Humidity Range: 95% Rh (Non Condensing).
Equipment Weight: Approx. 6.3Kg.
Dimensions :406 X 330 X 174Mm.
Included Accessories:
2 Measuring Test Leads
1 Guard Test Lead
1 Ac Adapter
1 Usb Cable
1 Protective Bag
1 User Guide
1 Megalogg2 Software
