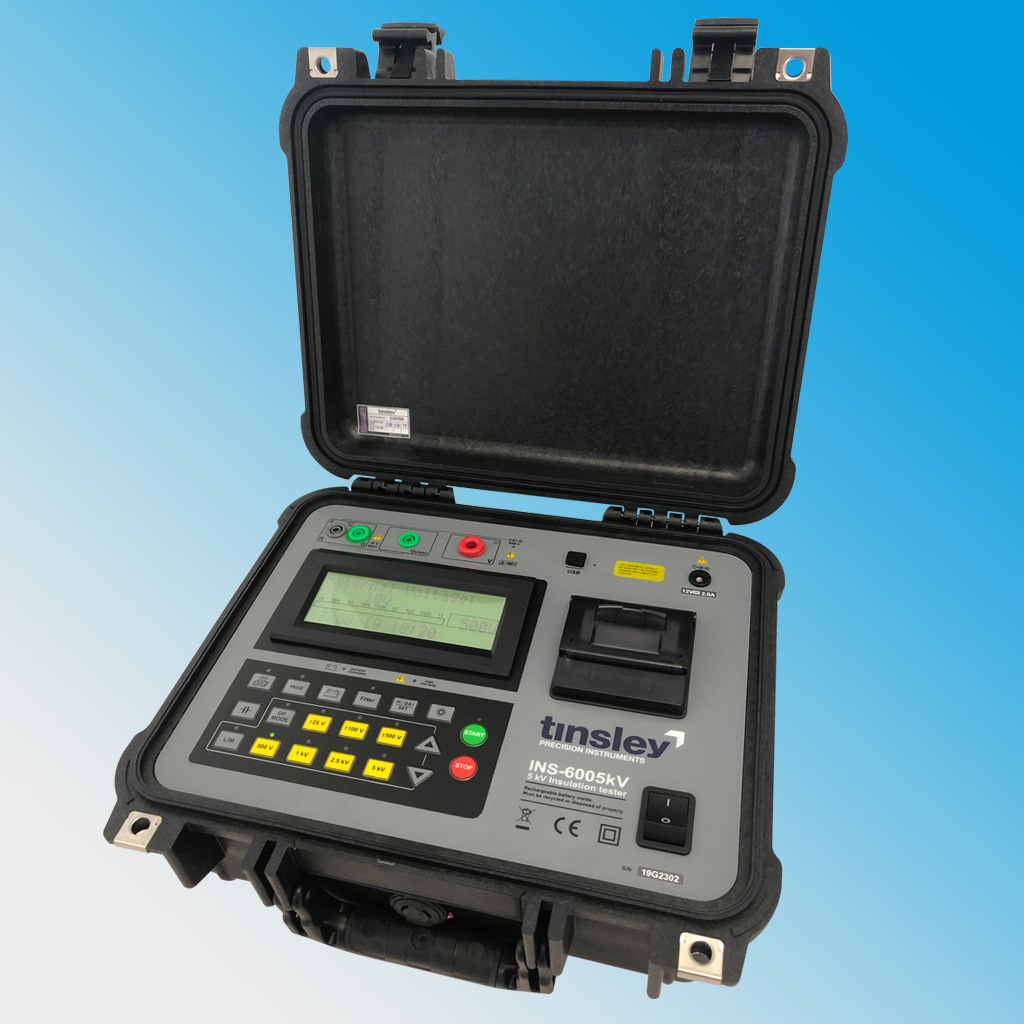

Tinsley INS-6005kV ອຸປະກອນທົດສອບການປ້ອງກັນດິຈິຕອນ
Test Voltages: 500V - 1kV - 2.5 kV - 5 kV directly, one button selectable. 500 V to 5 kV in 25 V, 100 V or 500 V steps. DC, negative.
Maximum Resistance Reading: 5 TΩ @ 5 kV.
Dc Voltmeter : 10V up to 1,000 Vdc. Accuracy: ±(5% of reading + 3 digits)
Ac Voltmeter: 10V up to 1,000 V r.m.s .Accuracy: ±(5% Of Reading + 3 Digits).
Overvoltage Category: CAT. III - 600V.
Leakage Current Measurement: 1nA up to 3mA ±(10% Of Reading+ 3 Digits).
Capacitance Measurement:
50nF up to 10μF @ 500V.
MEASUREMENT 50nF up to 5μF @ 1,000V.
30 nF up to 2μF @ 2,500V.
30 nF up to 1μF @ 5,000V.
Accuracy: ±10% of reading ± 3 digits
Short Circuit Current: Max. 3 mA.
Test Voltages Accuracy: ± 3% of nominal test voltages on 10GΩ.
Megohmmeter Basic Accuracy:
± 5% of reading 1MΩ to 1TΩ @ 5 kV
± 20% of reading 1 TΩ to 5 TΩ @ 5 kV. (for lower test voltages, the upper limit will
be reduced proportionally).
± 20% of reading 10kΩ to 100kΩ.
± 10% of reading 100 kΩ to 1 MΩ.
Advanced Features :
Automated Polarization Index calculation.
Automated Dielectric Absorption Ratio calculation.
Programmable Pass-Fail test.
Step Voltage Test.
4000 readings memory.
Switchable filter to remove external noise interference.
Built-In Printer : Prints elapsed time, actual voltage and resistance measured each 15 seconds.
Data Output: Usb
Built-In Chronometer: Shows Elapsed Time In Mm:Ss Format. Count Starts Automatically For Each Measurement.
Megalogg2 Software: Friendly, Easy To Use Software. Tests Are Represented In Graphic And Tabular Views. With Automatic Report Generator, Including The Operator'S Commentaries.
Environmental Protection: Ip54 (With Closed Lid)
Safety Class: In Accordance With Iec 61010-1.
E.M.C. :In Accordance With Iec 61326-1
Electro Magnetic Irradiation Immunity: In Accordance With Iec 61000-4-3.
Electrostatic Immunity :In Accordance With Iec 61000-4-2.
Power Supply : Internal Rechargeable Battery (LiFePO4 12.8 V - 6000 mAh
Battery Charger : 12 V - 2 A.
Operatingtemperature Range: -5°C To 50°C.
Storage Temperature Range: -25°C To 65°C.
Humidity Range: 95% Rh (Non Condensing).
Equipment Weight: Approx. 4.3kg
Dimensions :340 x 295 x 152mm.
Included Accessories:
2 Measuring Test Leads
1 GUARD test lead.
1 AC Adapter.
1 USB cable.
1 Protective bag.
1 User guide.
1 MegaLogg2 software.
