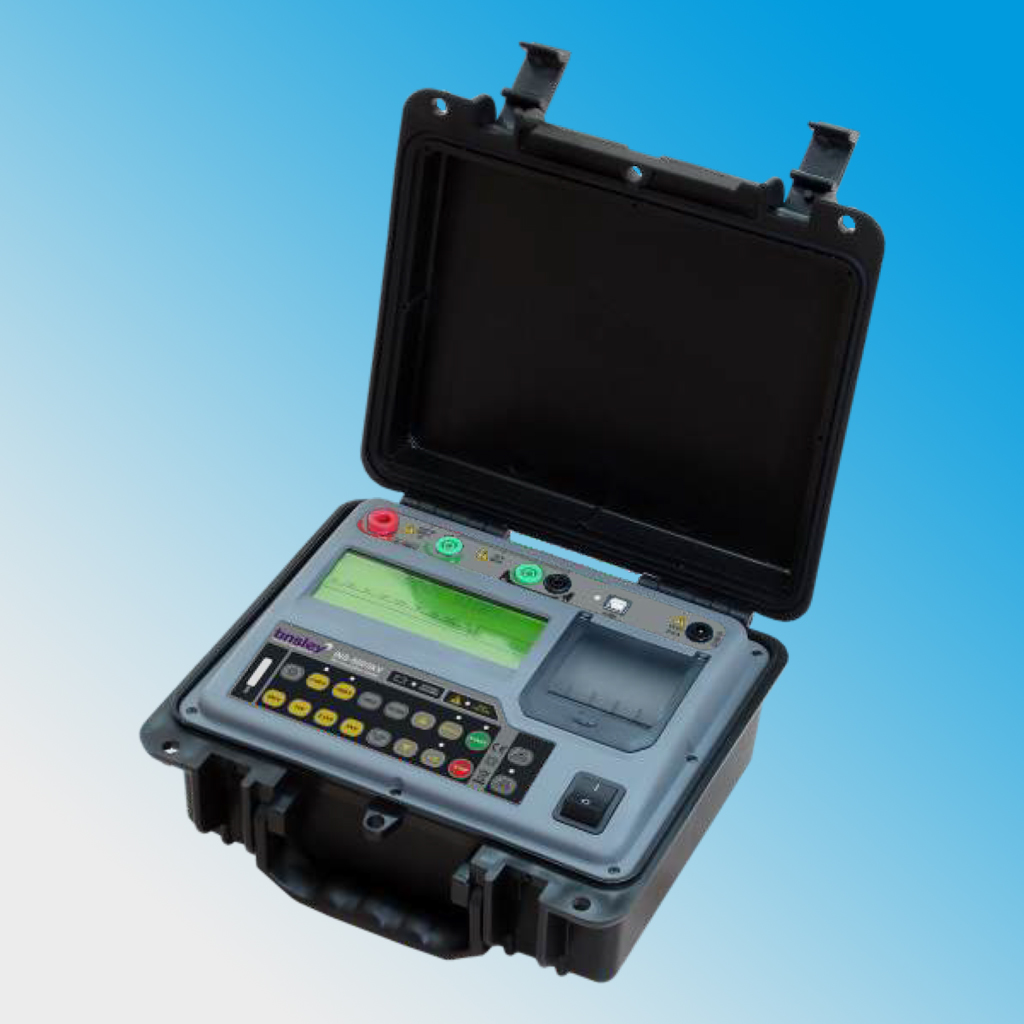

Tinsley INS-5005KV ອຸປະກອນທົດສອບການປ້ອງກັນໄຟຟ້າ

Test voltages: 500, 1000, 2500, 5000 V directly, one button selectable. 500 V to 5 kV in 100 V increments. DC, negative.

Maximum resistance reading: 5 TΩ @ 5 kV.

Short circuit current: 1.5 ± 0.5 mA.

Test voltages accuracy: ± 3 % of nominal test voltages on R ≥ 10 GΩ.

Insulation tester basic accuracy:

± 5 % of reading from 1 MΩ up to 1 TΩ.

± 20 % of reading from 1 TΩ up to 5 TΩ.

Advanced features:

Automated polarization index calculation.

Automated dielectric absorption ratio calculation.

Step voltage test.

Programmable pass / fail test.

Built-in printer: Prints elapsed time, actual voltage and resistance measured each 15 seconds.

Built-in memory: Stores up to 4000 measured values.

Interface: USB.

Built-in chronometer: Shows elapsed time in mm:ss format. Count starts automatically for each measurement.

Real time clock and calendar: Allows a reliable identification for each test.

T-Logger software: Friendly, easy to use software. Tests are represented in graphical and tabular views. With automatic report generator, including the operator's commentaries.

Environmental protection: IP54 (with closed lid).

Safety class : In accordance with IEC 61010-1.

E.M.C.: In accordance with IEC 61326-1.

Electrostatic immunity: In accordance with IEC 61000-4-2.

Electromagnetic irradiation immunity: In accordance with IEC 61000-4-3.

Power supply: Internal rechargeable LFP 12 V - 3000 mAh battery.

Battery charger: 12 V - 2 A.

Operating temperature range: 23 °F to 122 °F (-5 °C to 50 °C).

Storage temperature range: -13 °F to 158 °F (-25 °C to 70 °C).

Humidity range: 95 % RH (non condensing).

Equipment weight: Approx. 7.94 lb (3.6 kg).

Dimensions: 10.78" x 9.84" x 4.88" (274 x 250 x 124 mm).

Included accessories:

2 Measuring test leads.

1 GUARD test lead.

1 AC Adapter.

1 T-Logger software (CD-ROM).

1 User guide.

1 Protective bag.

1 USB cable.
