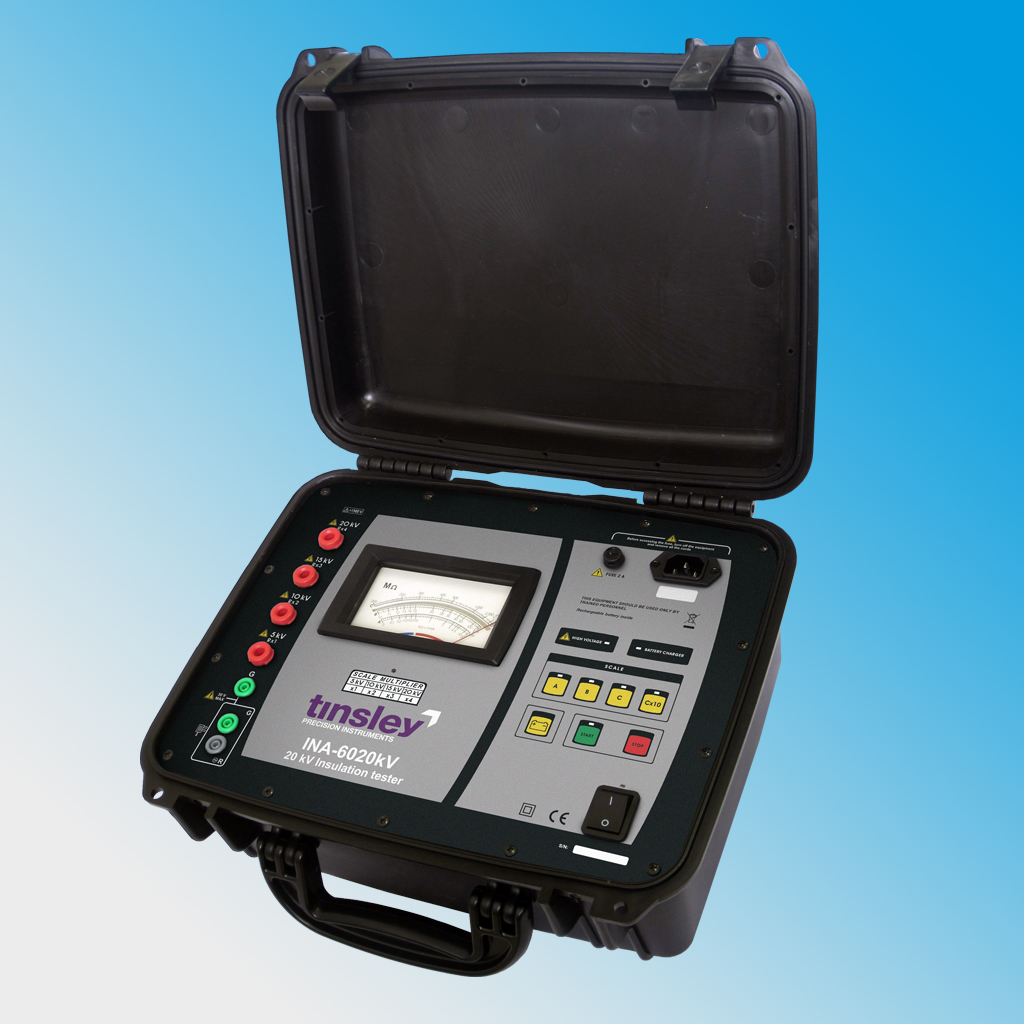

Tinsley INA-6020kV 20kV ອຸປະກອນທົດສອບການປ້ອງກັນໄຟຟ້າແຮງສູງ (20kV)
Test voltages 5 kV - 10 kV - 15 kV - 20 kV.
Maximum resistance reading
1 TΩ @ 5 kV.
2 TΩ @ 10 kV.
3 TΩ @ 15 kV.
4 TΩ @ 20 kV.
Short circuit current 500 µA.
Test voltages accuracy ± 2 % of nominal test voltages on R ≥ 10 GΩ.
Internal current limiting resistance
10 MΩ @ 5 kV.
20 MΩ @ 10 kV.
30 MΩ @ 15 kV.
40 MΩ @ 20 kV.
Insulation tester accuracy Class 2 (± 2 % of full scale deflection).
Analog indicator Up to 98 mm scale length, taut band, with mirror.
Environmental protection IP65 (with closed lid).
Safety class In accordance with IEC 61010-1.
Electromagnetic compatibility (E.M.C.) In accordance with IEC 61326-1.
Electromagnetic immunity In accordance with IEC 61000-4-3.
Electrostatic immunity In accordance with IEC 61000-4-2.
Power supply Internal rechargeable 12 V - 7 Ah, sealed lead acid battery.
Battery charger 230V -6% +1-% 50Hz.
Operating temperature range 23 °F to 122 °F (-5 °C to 50 °C).
Storage temperature range -13 °F to 158 °F (-25 °C to 70 °C).
Humidity range 95 % RH (non condensing).
Equipment weight Approx. 21.60 lb (9.8 kg).
Dimensions14.88" x 12.13" x 6.89" (378 x 308 x 175 mm).
