Test Force:
0.098n(10gf), 0.246n(25gf), 0.49n(50gf), 0.98n(100gf), 1.96n(200gf),2.94n(300gf), 4.90n(500kgf), 9.80n(1000gf),
Test Range:1HV~2967HV
Test Mode: HV/HK
Loading Method: Automatic (Loading/Dwell/Unloading)
Shifting between Objective and Indenter: Automatic Shifting
Computer: CPU: Intel I5, Memory: 2G, SSD: 64G
Conversion Scale: 1.30 Million
CCD Pixel:
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HS, HBW
Data Output: WORD or EXCEL Report with Curve Chart
Hardness Reading: Indentation Displaying and Automatic Measuring on Touch Screen
Objective: 10× (Observe), 40× (Measure)
Resolution: 0.025μm
Dwell Time: 0~60s
Light Source: Halogen Lamp
X-y Test
Table Size: 110×110mm; Travel: 50×50mm; Resolution: 0.002mm
Max. Height of Specimen: 185mm
Throat: 130mm
Power Supply: AC220V, 50Hz
Execute Standard: ISO 6507, ASTM E384, jIS Z2244, GB/T 4340.2
Dimension: 560×335×675mm,
Packing Dimension: 650×380×960mm
Weight
net Weight: 52kg
Gross Weight: 67kg
Accessories

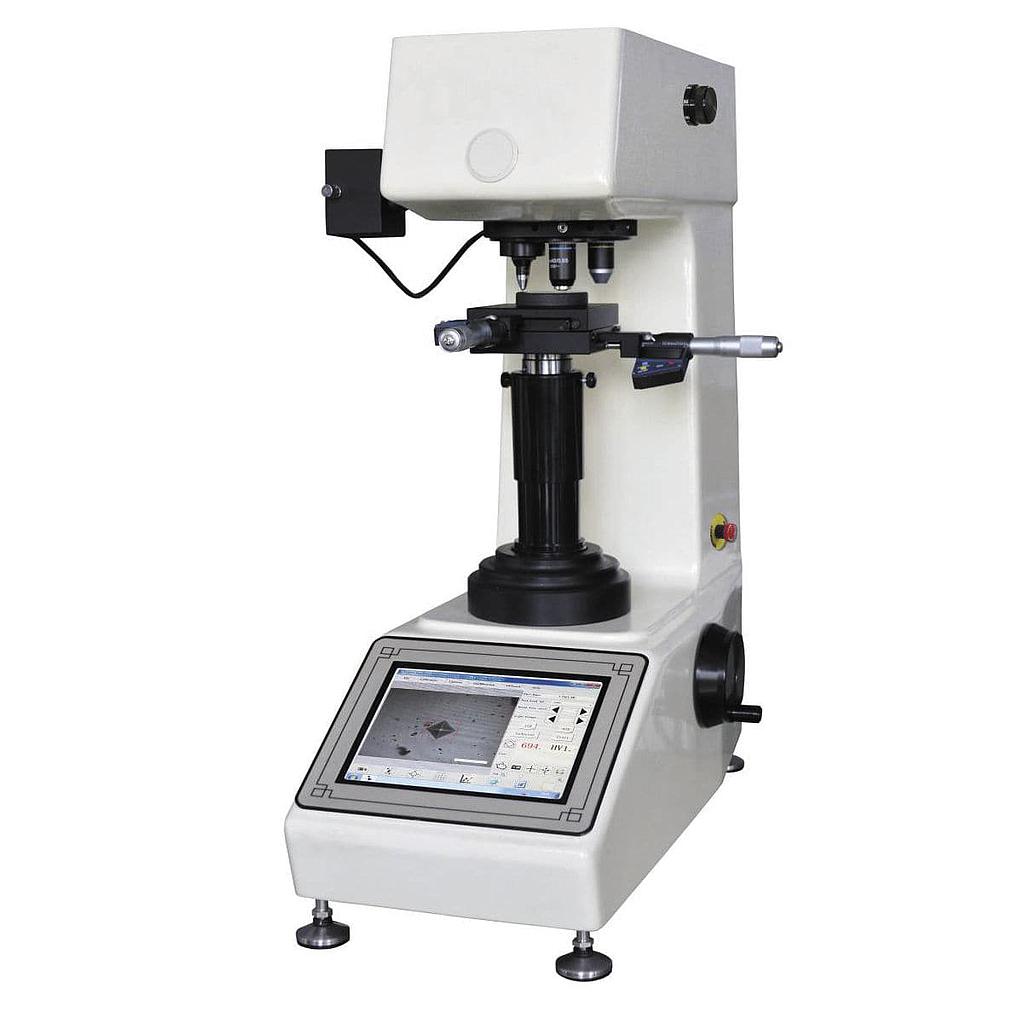

Instrument Main Body
10×, 40× Objective
External Touch Screen
6 x Weights
Motorized Cross Test Table
Flat Clamping Test Table
4 x Horizontal Regulating Screw
2 x Fuse 1A
Power Cable
Hardness Block 400~500 HV0.2
Anti-dust Cover
Touch Screen Remote Control
Usage Instruction Manual
10× Eyepiece
Diamond Micro Vickers Indenter
Weight Axis
Thin Specimen Test Table
Filament Clamping Test Table
Level
Halogen Lamp 12V, 15~20W
2 x Screw Driver
Hardness Block 700~800 HV1
U disk
Touch Pen
Mouse
