TIME 6356 ເຄື່ອງທົດສອບຄວາມແຂງຂອງ Rockwell ແລະ Superficial ອັດຕະໂນມັດ (3kgf/10kgf)

Closed-loop control unit, test force accuracy 1%, resolutions 0.1HR

Initial test force: 3kgf / 10kgf

Hardness scales

Superficial Rockwell hardness

Indenter: 15kgf; 30kgf; 45kgf

Diamond indenter: HR15n; HR30n; HR45n

1/16" ball indenter: HR15T; HR30T; HR45T

1/8" ball indenter: HR15W; HR30W; HR45W

1/4" ball indenter: HR15X; HR30X; HR45X

1/2" ball indenter: HR15y; HR30y; HR45y

Rockwell hardness

Indenter: 60kgf; 100kgf; 150kgf

Diamond indenter: HRA; HRD; HRC

1/16" ball indenter: HRF; HRB; HRG

1/8" ball indenter: HRH; HRE; HRK

1/4" ball indenter: HRL; HRM; HRP

1/2" ball indenter: HRR; HRS; HRV

Test force control: Auto Control (Load, Dwell time, Unload)

Screen: Touch screen with back-light LED

Maximum specimen height: 205mm

Maximum specimen width: 150mm

Storage: 2000 test values

Dwell time: Major dwell time: 0~99s

Power: 220/240V AC 50/60HZ

Dimension

Main unit: 250*670*605mm; Touch Screen: 165*260*105mm

Weight: 100kg

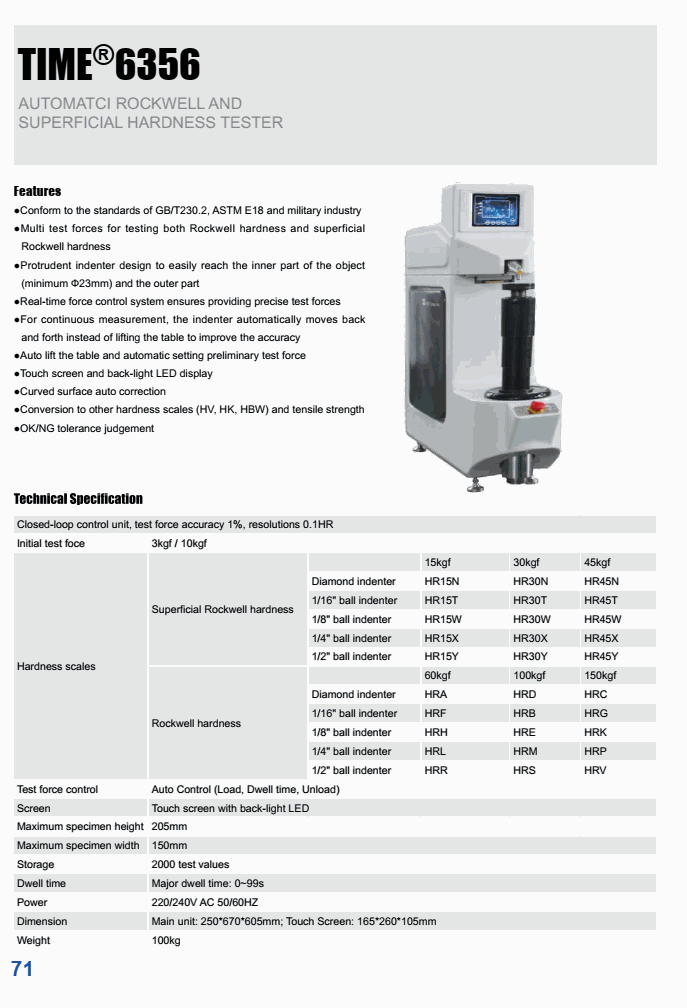

Datasheet
