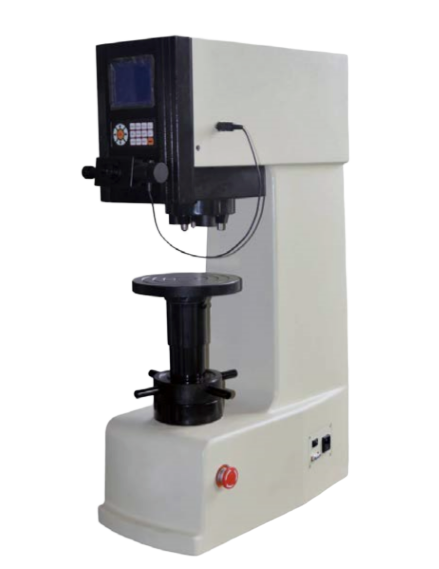

TIME 6204 ເຄື່ອງກວດຄວາມແຂງແບບດິຈິຕອລ Brinell ສາມຕົວ (3,18 ~ 653HBW)

Test Force:

612.9n(62.5kgf), 4903n(500kgf), 980.7n(100kgf), 7355n(750kgf), 1226n(125kgf), 9807n(1000kgf), 1839n(187.5kgf), 14710n(1500kgf), 2452n(250kgf), 29420n(3000kgf)

Test Range: 3.18~653HBW

Loading Method: Automatic (Loading/Dwell/Unloading)

Hardness Reading: LCD Display

Conversion Scale:

HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HS

Data Output: Built-in Printer, RS232 Interface

Shifting between Objective and Indenter: Automatic Recognition and Shifting (Three Indenters, Two Objectives)

Total Magnification: 20×, 40×

Resolution: 1.25μm, 0.625μm

Dwell Time: 0~60s

Max. Height of Specimen: 260mm

Throat: 150mm

Power Supply: AC220V, 50Hz

Execute Standard:

ISO 6506, ASTM E10-12, jIS Z2243, GB/T 231.2

Dimension: 545×235×755mm

Packing Dimension: 650×435×1025mm

Weight (kg)

net Weight: 130

Gross Weight: 160

Standard Delivery

Instrument Main Body

1×, 2× Objective

Small Plane Test Table

V-shaped Test Table

Standard hardness test block 150~250 HBW 10/3000

2 x Fuse 2A

20× Digital Measuring Eyepiece

Ф2.5mm, Ф5mm, Ф10mm Ball Indenter

Large Plane Test Table

Power Cable

Standard hardness test block 150~250 HBW 5/750

Inner Hexagon Spanner 3mm

Anti-dust cover

Usage Instruction Manual
