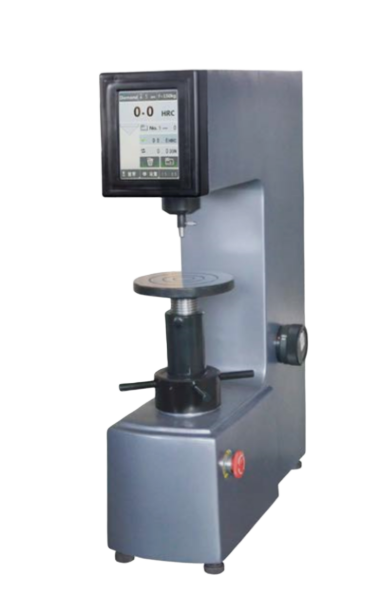

TIME 6102 ເຄື່ອງທົດສອບຄວາມແຂງຂອງດິຈິຕອລ Rockwell (10kgf (98,07n))
Initial test Force: 10kgf(98.07n)
Total test force: 60kgf(588.4n); 100kgf(980.7n); 150kgf(1471n)
Loading method: Automatic (Loading/Dwell/Unloading)
Hardness reading: Touch Screen Display
Test scale:
HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV
Conversion scale:
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HS, HBW
Data output: Built-in Printer, RS232 Interface
Resolution: 0.1HR
Dwell time: 0~60s
Max. height of specimen: 175mm
Throat: 165mm
Execute standard: ISO 6508, ASTM E-18, jIS Z2245, GB/T 230.2
Power source: AC220V, 50Hz
Dimension (mm):
520×215×700
Packing Dimension: 650×370×950
Weight (kg)
net Weight: 78
Gross Weight: 100
Standard Delivery
1 set Instrument Main Body
ф1.588mmBall Indenter
Large Plane Test Table
Hardness Block 60~70 HRC
Hardness Block 80~100 HRB
Power Cable
Level
Inner Hexagon Spanner
Diamond Rockwell Indenter
Middle Plane Test Table
V-shaped Test Table
Hardness Block 20~30 HRC
Weight A
Weight B
Weight C
2x Fuse 2A
4 x Horizontal Regulating Screw
Spanner
Anti-dust cover
Usage Instruction Manual
