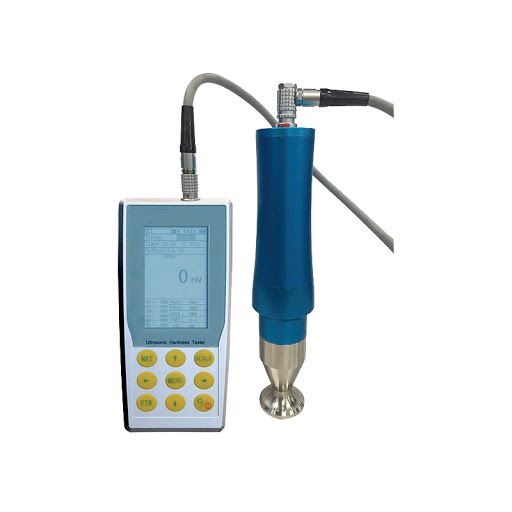

TIME 5620 ເຄື່ອງກວດຄວາມແຂງ Ultrasonic (2Kgf)

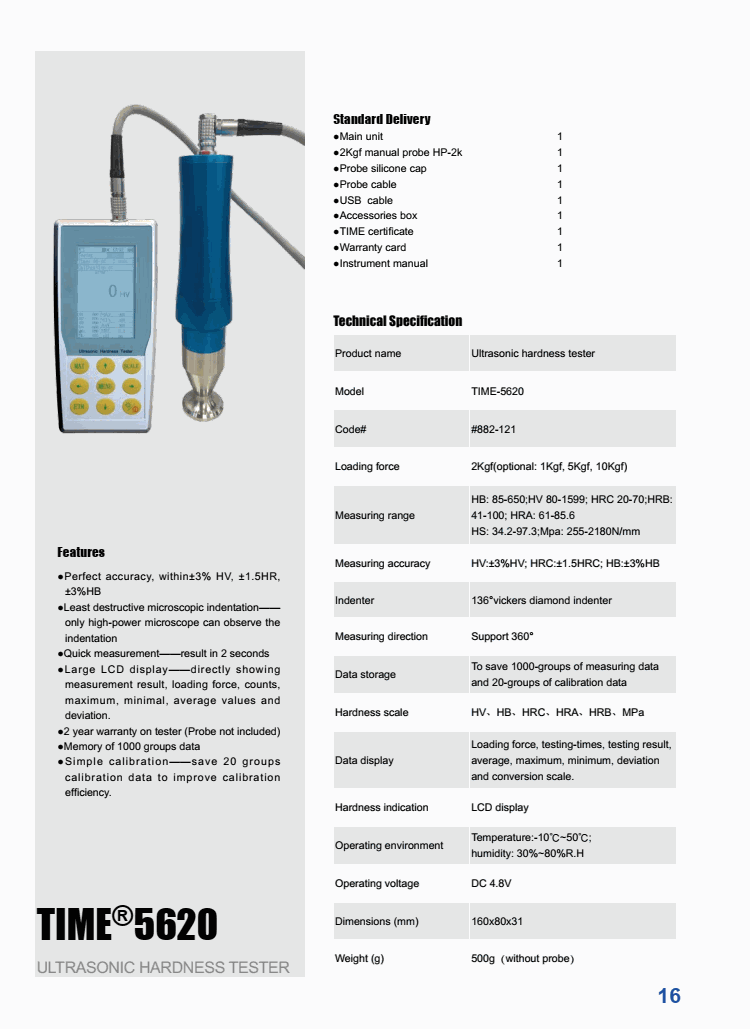

Specifications:

Loading force: 2Kgf (optional: 1Kgf, 5Kgf, 10Kgf)

Measuring range

HB: 85-650;HV 80-1599; HRC 20-70;HRB: 41-100; HRA: 61-85.6

HS: 34.2-97.3;Mpa: 255-2180N/mm

Measuring Accuracy: HV:±3%HV; HRC:±1.5HRC; HB:±3%HB

Indenter: 136°vickers diamond indenter

Measuring direction: Support 360°

Data storage: To save 1000-groups of measuring data and 20-groups of calibration data

Hardness scale: HV, HB, HRC, HRA, HRB, MPa

Data Display: Loading force, testing-times, testing result, average, maximum, minimum, deviation

and conversion scale.

Hardness indication: LCD Display

Operating environment

Temperature: -10°C~50°C;

Humidity: 30%~80%R.H

Operating voltage: DC 4.8V

Dimensions (mm): 160x80x31

Weight (g): 500g (without probe)

Standard Delivery

Main unit

2Kgf manual probe HP-2k

Probe silicone cap

Probe cable

USB cable

Accessories box

TIME certificate

Warranty card

Instrument manual
