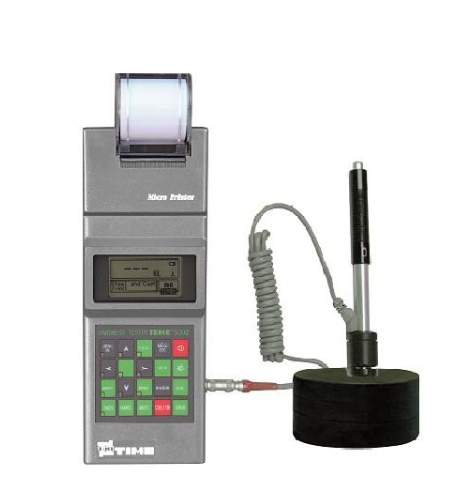

TIME 5302 ເຄື່ອງທົດສອບຄວາມແຂງແບບພົກພາ (Leeb; type D; 30-110 HSD, HLD)
Specifications:
Hardness scale: HL, HRC, HRB, HRA, HV, HB, HS
Memory: group(Impact times:32-1)
Measuring range: see page 13
Tolerance: see page 14
Tensile strength U.T.S. range: 374~2652 MPa
Standard impact device: D
Optional impact devices: DC/D+15/G/C/DL
Min. Radius of workpiece (convex/concave): Rmin = 50mm (with special support ring Rmin= 10mm)
Max. workpiece hardness: see page 14
Min. workpiece weight: see page 14
Min. workpiece thickness: see page 14
Min. thickness of hardened layers: see page 14
Power: Rechargeable NiMH Battery,5×1.2V 600mAh
Continuous working time: About 50h (without printing and backlight)
Charging time: 2~3.5 hours
Operating temperature: 0~40°C
Humidity: 90%
Dimensions (mm): 268×86×50
Weight (g): 530 (including impact device and printer)
Standard Delivery
Main unit
Impact device type D
Test block HLD
Charger
Cleaning brush
Table support for main unit
Connecting cable
TIME certificate
Warranty card
