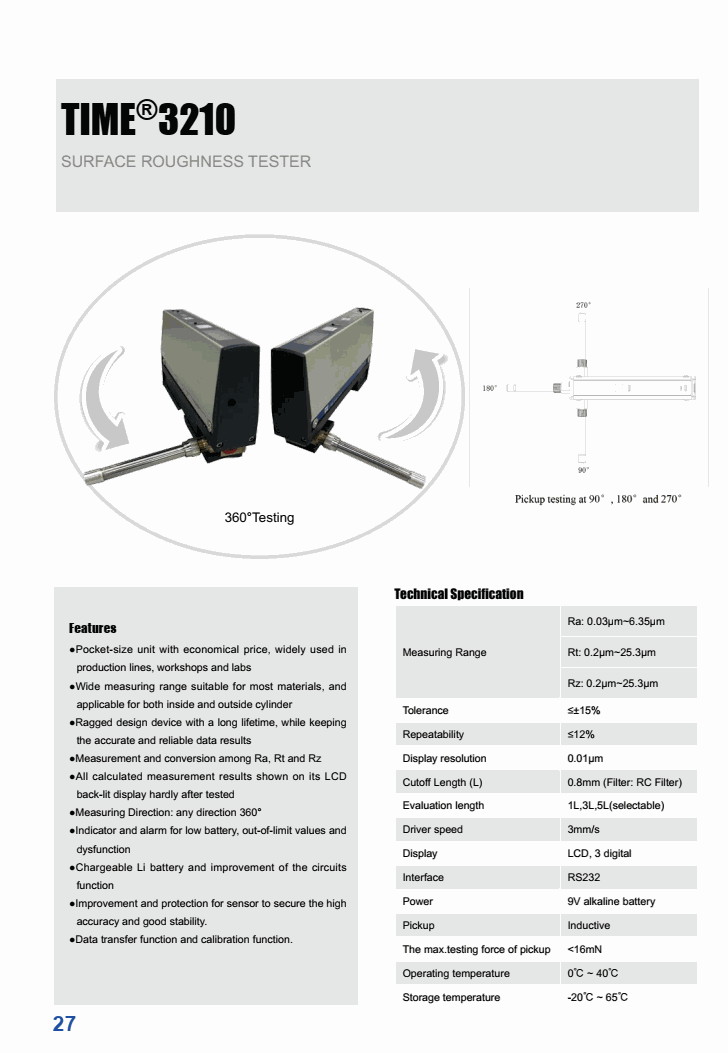

TIME 3210 ເຄື່ອງທົດສອບຄວາມຫຍາບຂອງພື້ນຜິວ

Measuring range:

Ra: 0.03μm~6.35μm

Rt: 0.2μm~25.3μm

Rz: 0.2μm~25.3μm

Tolerance: ≤±15%

Repeatability: ≤12%

Display Resolution: 0.01μm

Cutoff length (L): 0.8mm (Filter: RC Filter)

Evaluation length: 1L, 3L, 5L(selectable)

Driver speed: 3mm/s

Display: LCD, 3 digital

Interface: RS232

Power: 9V alkaline battery

Pickup: Inductive

The max. testing force of pickup: <16mn

Operating temperature: 0℃ ~ 40℃

Storage temperature: -20℃ ~ 65℃
