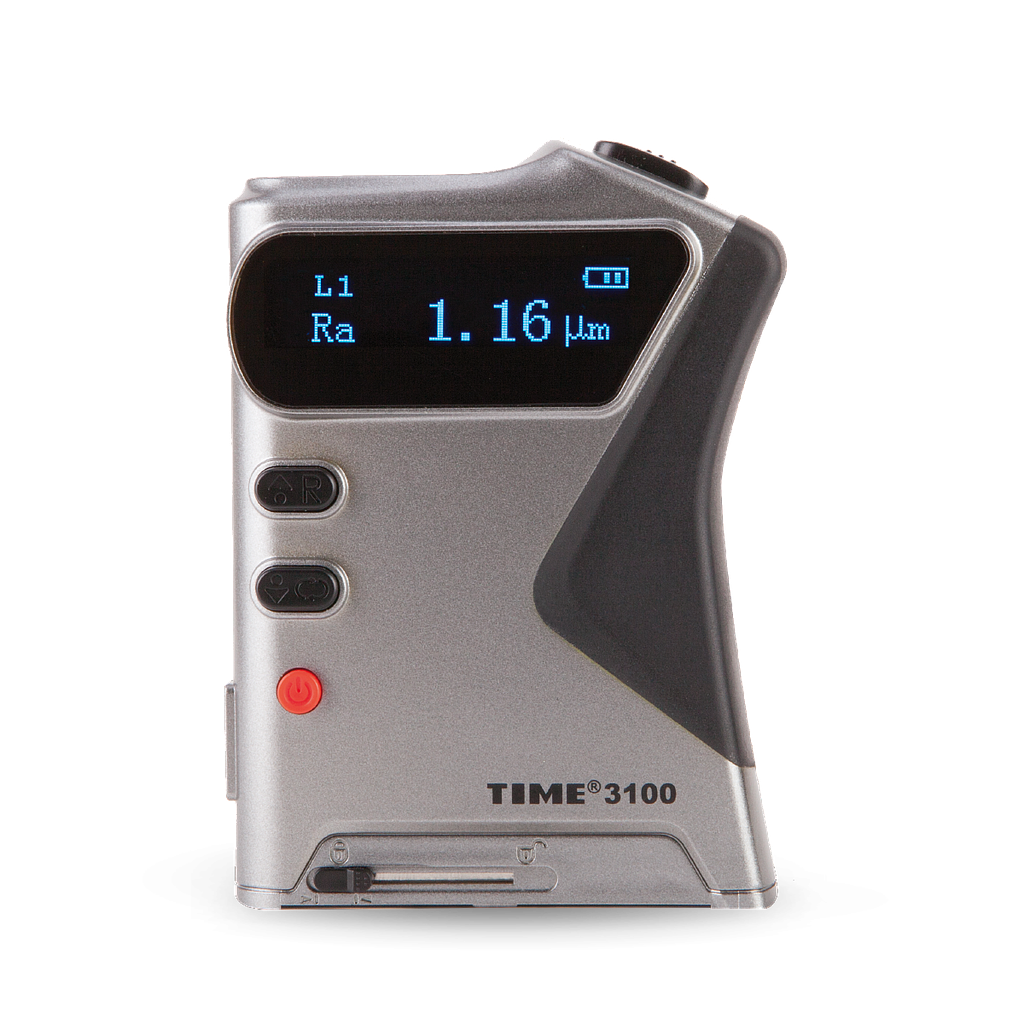

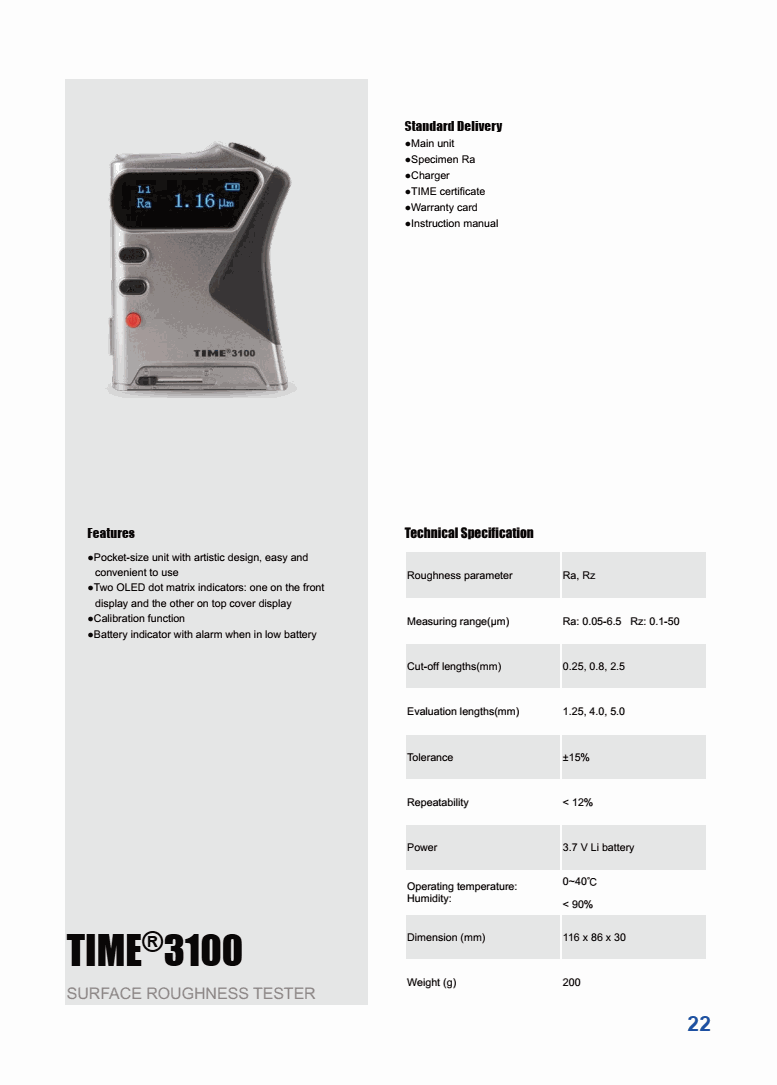

TIME 3100 ເຄື່ອງທົດສອບຄວາມຫຍາບຂອງພື້ນຜິວ (Ra: 0.05-6.5; Rz: 0.1-50)

Roughness parameter: Ra, Rz

Measuring range(µm): Ra: 0.05-6.5 Rz: 0.1-50

Cut-off lengths: (mm): 0.25, 0.8, 2.5

Evaluation lengths (mm): 1.25, 4.0, 5.0

Tolerance: ±15%

Repeatability: < 12%

Power: 3.7 V Li battery

Operating temperature: 0~40℃

Humidity: < 90%

Dimension (mm): 116 x 86 x 30

Weight (g): 200

Standard Delivery

Main unit

Specimen Ra

Charger

TIME certificate

Warranty card

Instruction manual
