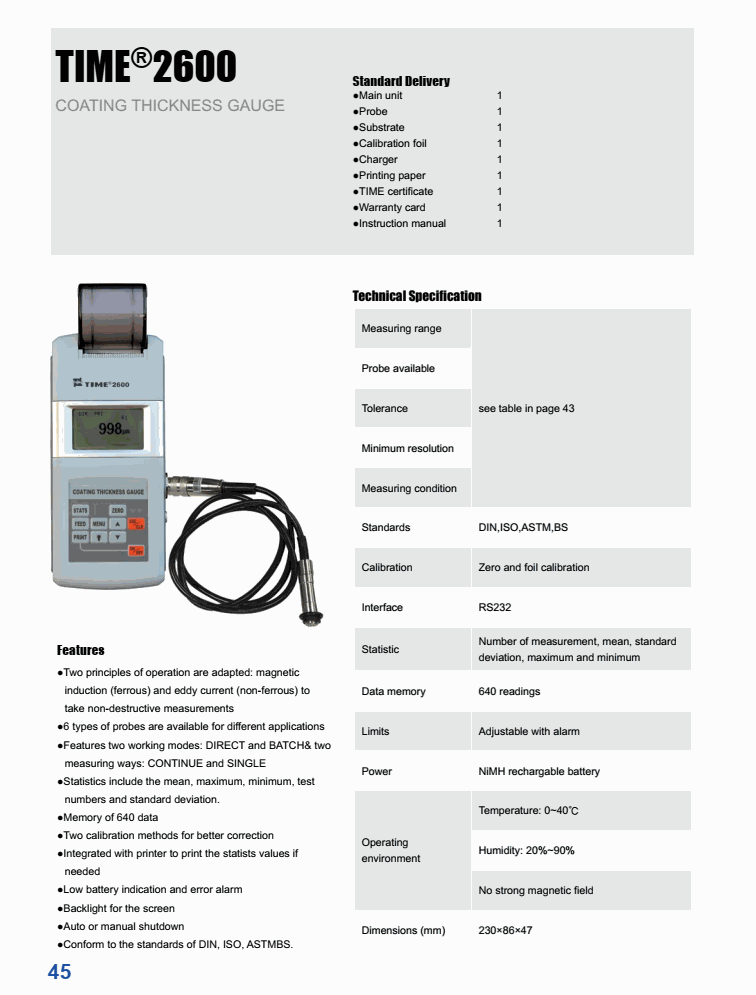

TIME 2600 ເຄື່ອງວັດແທກຄວາມຫນາຂອງການເຄືອບ (0-1250 µm/0-40µm; 0.1µm)
Specifications:
Probe Types: F; N
Working principle: Magnetic induction; Eddy current
Measuring range: 0-1250 µm; 0-1250 µm, 0-40µm (for chrome plate on copper)
Minimum resolution: 0.1µm
Tolerance
Zero point calibration: ±(3%H+1) µm; ±(3%H+1.5) µm
H means the thickness of tested piece
Two points calibration ±{(1-3)%H+1}µm; ±{(1-3)%H+1.5}µm
H means the thickness of tested piece
Measuring condition
Min. curvature radius: Convexity 1.5 mm; Convexity 3 mm
Min. area diameter: Φ7 mm; Φ5 mm
Standards: DIn,ISO,ASTM,BS
Calibration: Zero and foil calibration
Interface: RS232
Statistic: Number of measurement, mean, standard deviation, maximum and minimum
Data memory: 640 readings
Limits: Adjustable with alarm
Power: niMH rechargable battery
Operating environment
Temperature: 0~40℃
Humidity: 20%~90%
No strong magnetic field
Dimensions (mm): 230×86×47
Standard Delivery
Main unit
Probe
Substrate
Calibration foil
Charger
Printing paper
TIME certificate
Warranty card
Instruction manual
