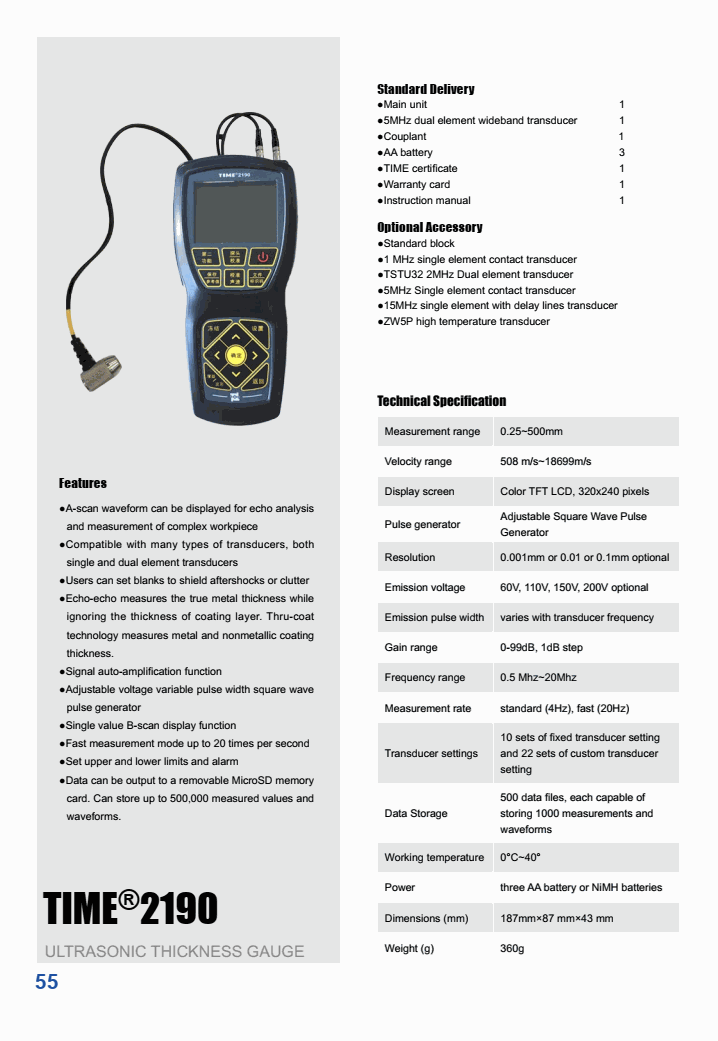

TIME 2190 ເຄື່ອງວັດແທກຄວາມຫນາ Ultrasonic (0.25~500mm)
Specifications:
Measurement range: 0.25~500mm
Velocity range: 508 m/s~18699m/s
Display screen: Color TFT LCD, 320x240 pixels
Pulse generator: Adjustable Square Wave Pulse Generator
Resolution: 0.001mm or 0.01 or 0.1mm optional
Emission voltage: 60V, 110V, 150V, 200V optional
Emission pulse width: varies with transducer frequency
Gain range: 0-99dB, 1dB step
Frequency range: 0.5 Mhz~20Mhz
Measurement rate: standard (4Hz), fast (20Hz)
Transducer settings: 10 sets of fixed transducer setting and 22 sets of custom transducer setting
Data Storage: 500 data files, each capable of storing 1000 measurements and waveforms
Working temperature: 0°C~40°
Power: three AA battery or niMH batteries
Dimensions (mm): 187mm×87 mm×43 mm
Weight (g): 360g
Standard Delivery
- Main unit
- 5MHz dual element wideband transducer
- Couplant
- 3x AA battery
- TIME certificate
- Warranty card
- Instruction manual
Optional Accessory
- Standard block
- 1 MHz single element contact transducer
- TSTU32 2MHz Dual element transducer
- 5MHz Single element contact transducer
- 15MHz single element with delay lines transducer
- ZW5P high temperature transducer
