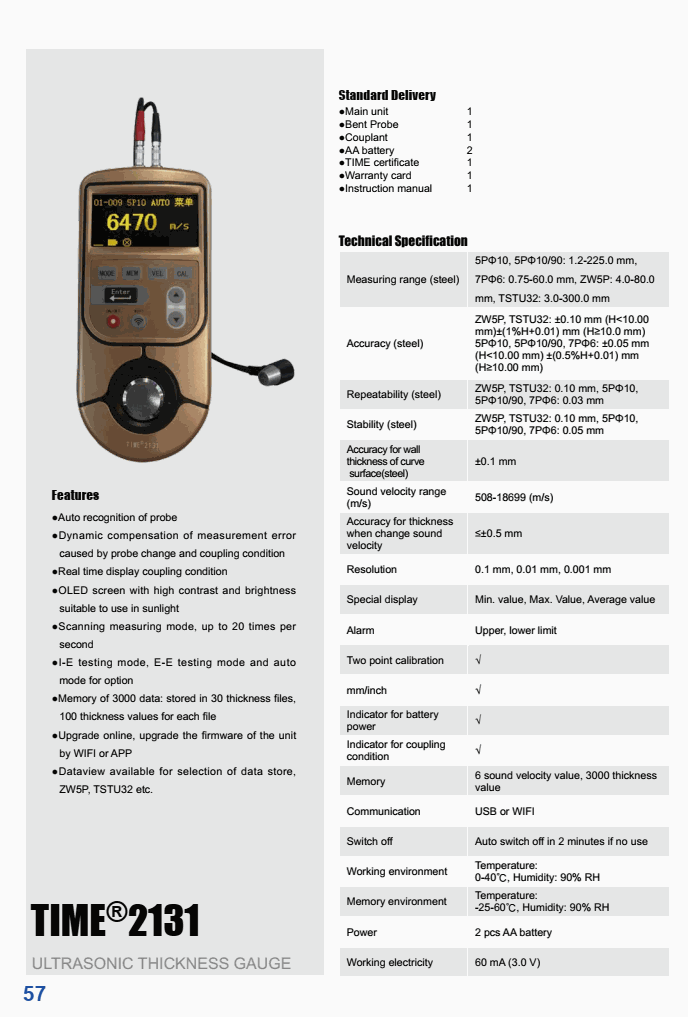

TIME 2131 ເຄື່ອງວັດແທກຄວາມຫນາ Ultrasonic
Specifications:
Measuring range (steel):
5PΦ10, 5PΦ10/90: 1.2-225.0 mm,
7PΦ6: 0.75-60.0 mm,
ZW5P: 4.0-80.0 mm,
TSTU32: 3.0-300.0 mm
Accuracy (steel):
ZW5P, TSTU32: ±0.10 mm (H<10.00 mm) ±(1%H+0.01) mm (H≥10.0 mm)
5PΦ10, 5PΦ10/90, 7
PΦ6: ±0.05 mm (H<10.00 mm) ±(0.5%H+0.01) mm (H≥10.00 mm)
Repeatability (steel): ZW5P, TSTU32: 0.10 mm,
5PΦ10, 5PΦ10/90, 7PΦ6: 0.03 mm
Stability (steel): ZW5P, TSTU32: 0.10 mm,
5PΦ10, 5PΦ10/90, 7PΦ6: 0.05 mm
Accuracy for wall thickness of curve surface(steel): ±0.1 mm
Sound velocity range: (m/s) 508-18699 (m/s)
Accuracy for thickness when change sound velocity: ≤±0.5 mm
Resolution: 0.1 mm, 0.01 mm, 0.001 mm
Special display: Min. value, Max. Value, Average value
Alarm: Upper, lower limit
Two point calibration: √
mm/inch: √
Indicator for battery Power: √
Indicator for coupling condition: √
Memory 6 sound velocity value, 3000 thickness value
Communication USB or WIFI
Switch off: Auto switch off in 2 minutes if no use
Working environment
Temperature: 0-40℃
Humidity: 90% RH
Memory environment
Temperature: -25-60℃, Humidity: 90% RH
Power: 2 pcs AA battery
Working electricity: 60 mA (3.0 V)
Standard Delivery
Main unit
Bent Probe
Couplant
2 x AA battery
TIME certificate
Warranty card
Instruction manual
