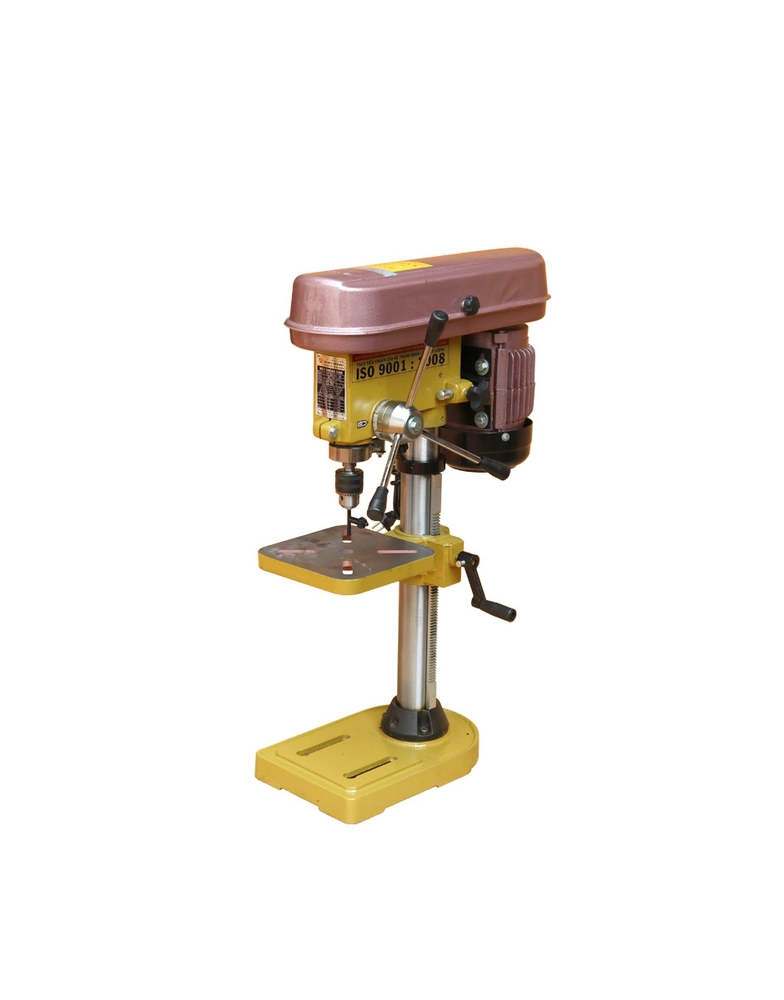

TIEN DAT KT800 ເຄື່ອງບິນດຣິວລາວ (1/2HP)

Maximum Drilling Diameter (mm): Ø1.5 to Ø13

Spindle Travel (mm): 60

Spindle Speed (RPM): 590 – 1000 – 1500 – 2500

Pulley Belt Type: M35 x 1

Drill Column Diameter: 60mm

Worktable Diameter: 205 x 205mm

Worktable Vertical Travel: 230mm

Distance from Spindle Center to Outer Column: 129mm

Maximum Distance from Drill Chuck to Worktable: 265mm

Distance from Drill Chuck to Base: 410mm

Motor Power: 1/2 Hp, 1450 RPM

Operating Voltage: 220V

Machine Height: 810mm

Machine Dimensions (L x W x H): 520 x 260 x 810mm

Machine Weight: 47Kg
