THORLABS TD2X Unmounted Thermal Detectors (100 µW - 500 mW)
Wavelength Range: 190 nm - 20 µm
Optical Power Working Range(a): 100 µW - 500 mW
Active Sensor Area: 2.0 mm x 2.0 mm (0.08" x 0.08")
Max Average Power Density(b): 1.5 kW/cm²
Max Pulse Energy Density: 0.3 J/cm2 (1 ns Pulse), 5 J/cm2 (1 ms Pulse)
Detector Type: Thermopile
Typical Responsivity: >100 mV/W
Linearity with Optical Power: ±0.2%
Rise Time(c): 1.5 s
Active Area Uniformity: ±1% (>1 mm Beam Diameter)

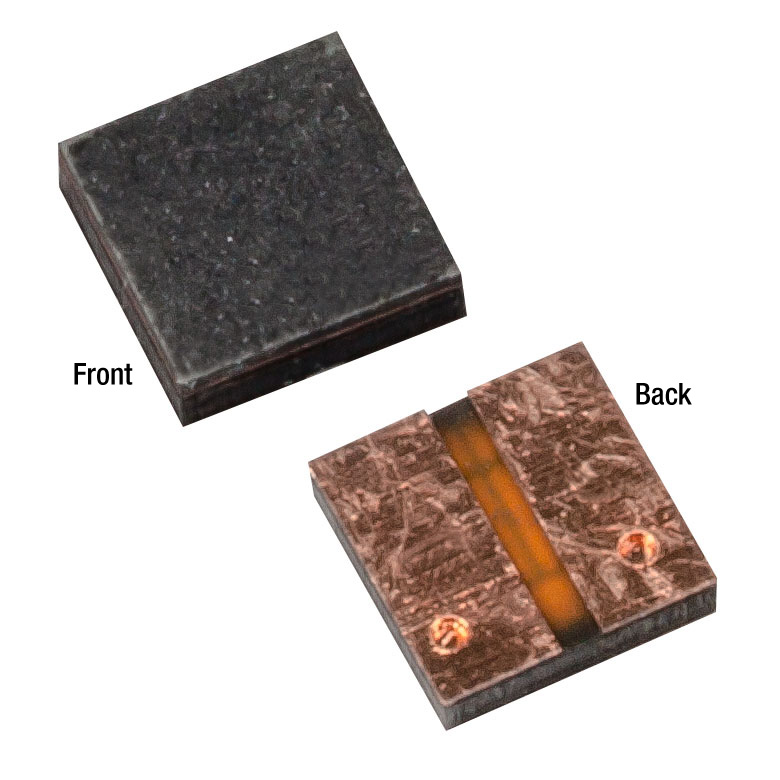

Detector Dimensions: 2.0 mm x 2.0 mm x 0.5 mm (0.08" x 0.08" x 0.02")
Mounting(a): SMD Solder Pads
Electrical Connection: Copper Solder Pads on Back Side
(a) Mounting on an appropriate heat sink is required. For mounting instructions and other information, see the Handling Instructions manual.
(b) Damage Threshold
(c) Typical Natural Response Time (0 - 95%)
