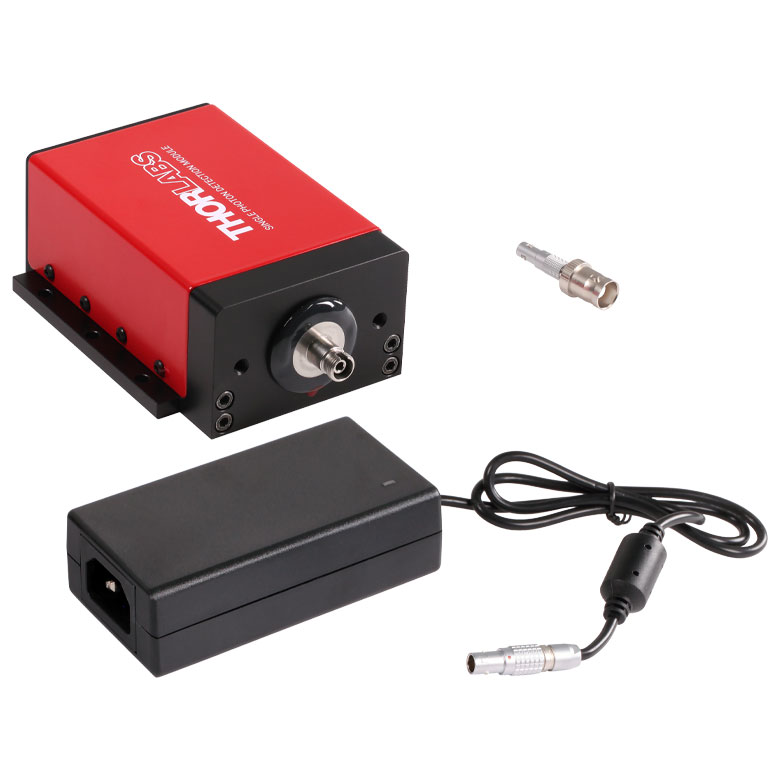

THORLABS SPDMH2 ໂມດູນການກວດຫາໂຟຕອນດຽວ (400-1000 nm, Fixed Gain)
Detector
Detector Type: Si Avalanche Photodetector
Wavelength Range: 400 nm - 1000 nm
Active Detector Size(b): Ø100 µm (Nominal)
Typical Photon Detection Efficiency(c):
- 10% @ 405 nm
- 50% @ 520 nm
- 70% @ 670 nm
- 60% @ 810 nm
Dark Count Rate (Max): 100 Hz
Count Rate: 20 MHz (Max)
Input Fiber Compatibility
Fiber Connector: N/A
Input Fiber Core Diameter (Max): N/A
Numerical Aperture: N/A
(a) See the manual for complete specifications.
(b) The active area of the integrated Si Avalanche Photodetector is larger than 100 μm. The SPDMH2F and SPDMH3F modules are optimized for optical fibers as specified above. A pre-aligned GRIN lens focuses the light onto a spot of <70 μm diameter in the center of the detector.
(c) Specifications are valid for modules without the FC/PC connector.
