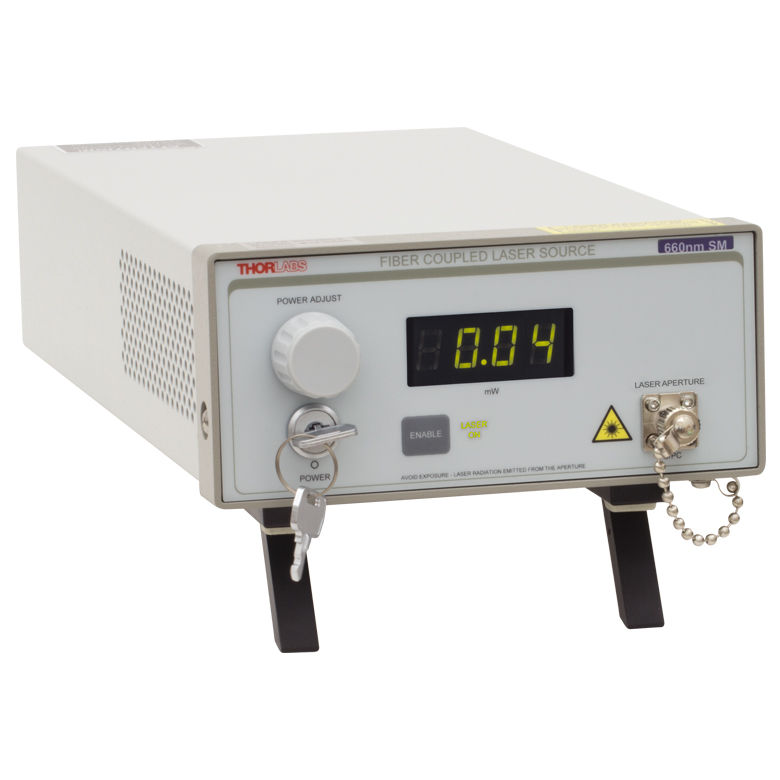

THORLABS S1FC660 ແຫຼ່ງເລເຊີ Fiber-Coupled (660 nm)
Wavelength Minimum: 645 nm
Wavelength Typical: 660 nm
Wavelength Maximum: 665 nm
Minimum Full Output Power: 15.0 mW
Setpoint Resolution: 0.01 mW
Laser Class: 3B
Fiber Type:SM600
Mode Field Diameter (*): 3.6-5.3 µm
Numerical Aperture: 0.10-0.14
Output Fiber Connector: FC/PC, Wide 2.1 mm Key Compatible
Electrical
Power Stability: 15 min: ±0.05 dB, 24 hr: ±0.1 dB (After 1 hr Warm-up at 25 ± 10 °C Ambient)
Display Accuracy: ±10%
Adjustment Range: ~0 mW to Full Power
Input Power: 115 VAC / 230 VAC (Switch Selectable) 50 - 60 Hz
Modulation Input:0 - 5 V = 0 - Full Power, DC or Sine Wave Input Only
Modulation
Bandwidth:
- 5 kHz Full Depth of Modulation
- 30 kHz Small Signal Modulation
Environmental
Operating Temperature: 15 to 35 °C
Storage Temperature: 0 to 50 °C
*Mode Field Diameter (MFD) is specified as a nominal value.
