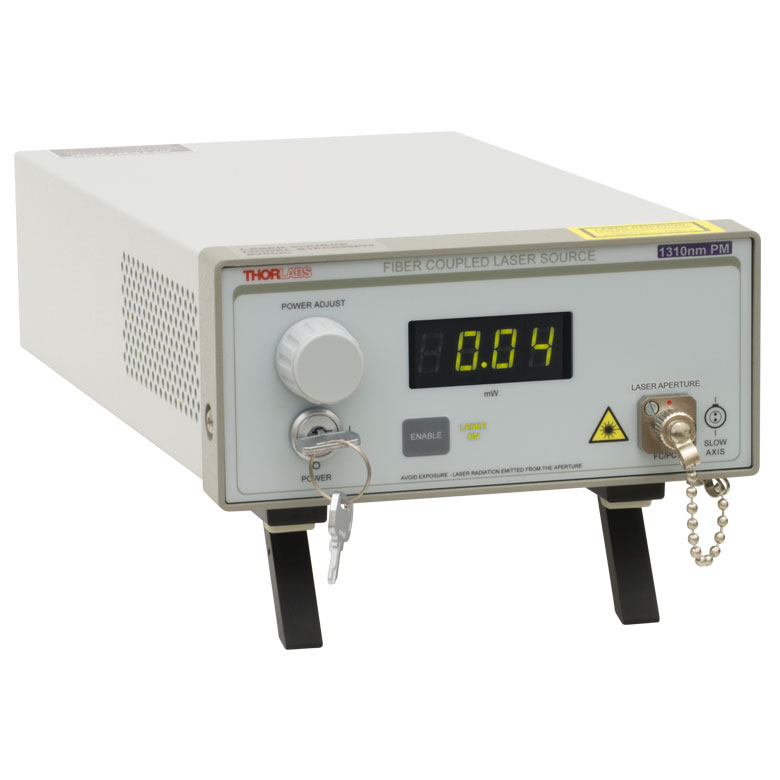

THORLABS S1FC1310PM Polarization-Maintaining Source (1310 nm)
Wavelength(a): 1310 nm
Minimum Full Output Power: 1.5 mW
Extinction Ratio(a): >23 dB
Stability: 15 min: ±0.05 dB, 24 hr:±0.1 dB (After 1 hr Warm-up at 25 ± 10 °C Ambient)
Display Accuracy: ±10%
Setpoint Resolution: 0.01 mW
Laser Class: 1
AdjustmentRange: ~0 mW to Full Power
Environmental:
- Operating Temperature: 15 to 35°C
- Storage Temperature: 0 to 50°C
AC Input: 115 VAC / 230 VAC (Switch Selectable) 50 - 60 Hz
Modulation Input: 0 - 5 V = 0 - Full Power, DC or Sine Wave Input Only
Modulation Bandwidth:
- 5 kHz Full Depth of Modulation
- 30 kHz Small Signal Modulation
Fiber: PM1300-HP
(a)The information provided in the specifications table is meant to serve as a guideline. However, since each pigtailed laser diode is unique, the specific data is included on a specifications sheet that is shipped with the product.
