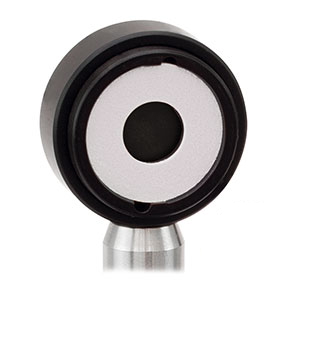

THORLABS S120VC ເຊັນເຊີພະລັງງານ Photodiode ມາດຕະຖານ (50 nW – 50 mW (200 – 450 nm), 50 nW – 20 mW (450 – 1100 nm))
Detector Type: Silicon Photodiode (UV extended)
Wavelength Range: 200 – 1100 nm
Optical Power Working Range:
• 50 nW – 50 mW (200 – 450 nm)
• 50 nW – 20 mW (450 – 1100 nm)
Average Power Density (Max): 20 W/cm²
Pulse Energy (Max): 20 µJ
Linearity: ±0.5%
Resolution: 1 nW
Measurement Uncertainty:
• ±3% (440 – 980 nm)
• ±5% (280 – 439 nm)
• ±7% (200 – 279 nm, 981 – 1100 nm)
Typical Application: Low-Power Lasers
Laser Types: Diode, Diode Arrays, He-Ne, Dye, Ion Lasers (Ar⁺, Kr⁺)
Coating/Diffuser: Reflective ND (OD 1.5)
Cooling: Convection
Head Temperature Measurement: NTC Thermistor, 4.7 kΩ
Response Time: < 1 µs
Sensor Dimensions: Ø30.5 mm × 12.7 mm
Active Detector Area: 9.7 mm × 9.7 mm
Input Aperture: Ø9.5 mm
Cable Length: 1.5 m
Connector: Sub-D 9p Male
Weight: 0.07 kg
Mounting Thread: 8-32 and M4
Aperture Thread: External SM1
Fiber Adapters (optional): FC, SC, LC, SMA, ST
