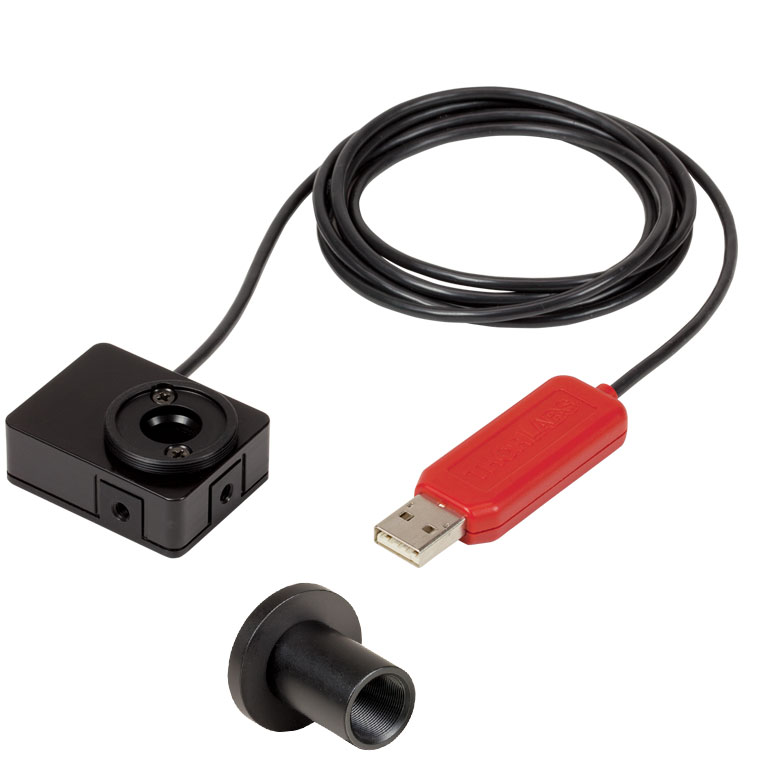

THORLABS PM16-405 ເຄື່ອງວັດແທກພະລັງງານ USB ຂະໜາດກະທັດຮັດດ້ວຍເຊັນເຊີຄວາມຮ້ອນ (0.19-20 µm)
Detector Type: Thermal Surface Absorber (Thermopile)
Wavelength Range: 190 nm - 20 µm
Optical Power Range: 100 µW - 5 W
Max Optical Power Density: 1.5 kW/cm² (Avg.)
Aperture Size: Ø10 mm (Ø0.39")
Resolution: 5 µW
Sensor Coating: High Power Broadband
Sensor Housing Dimensions: 40.6 mm x 40.6 mm x 16.0 mm (1.60" x 1.60" x 0.63")
Post Mounting: Universal 8-32 / M4 Taps (Post Not Included)
30 mm Cage Mounting: Two 4-40 Tapped Holes & Two Ø6 mm Through Holes
Aperture Threads: Internal SM05
Accessories: Externally SM1-Threaded Adapter
(a) For complete power meter specifications, see the manual.
(b) Under conditions of intermittent use, with maximum exposure time of 20 minutes for the PM16-401 and 2 minutes for the PM16-425. The PM16-405 saturates for optical input powers >5 W
